Engine Sight Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

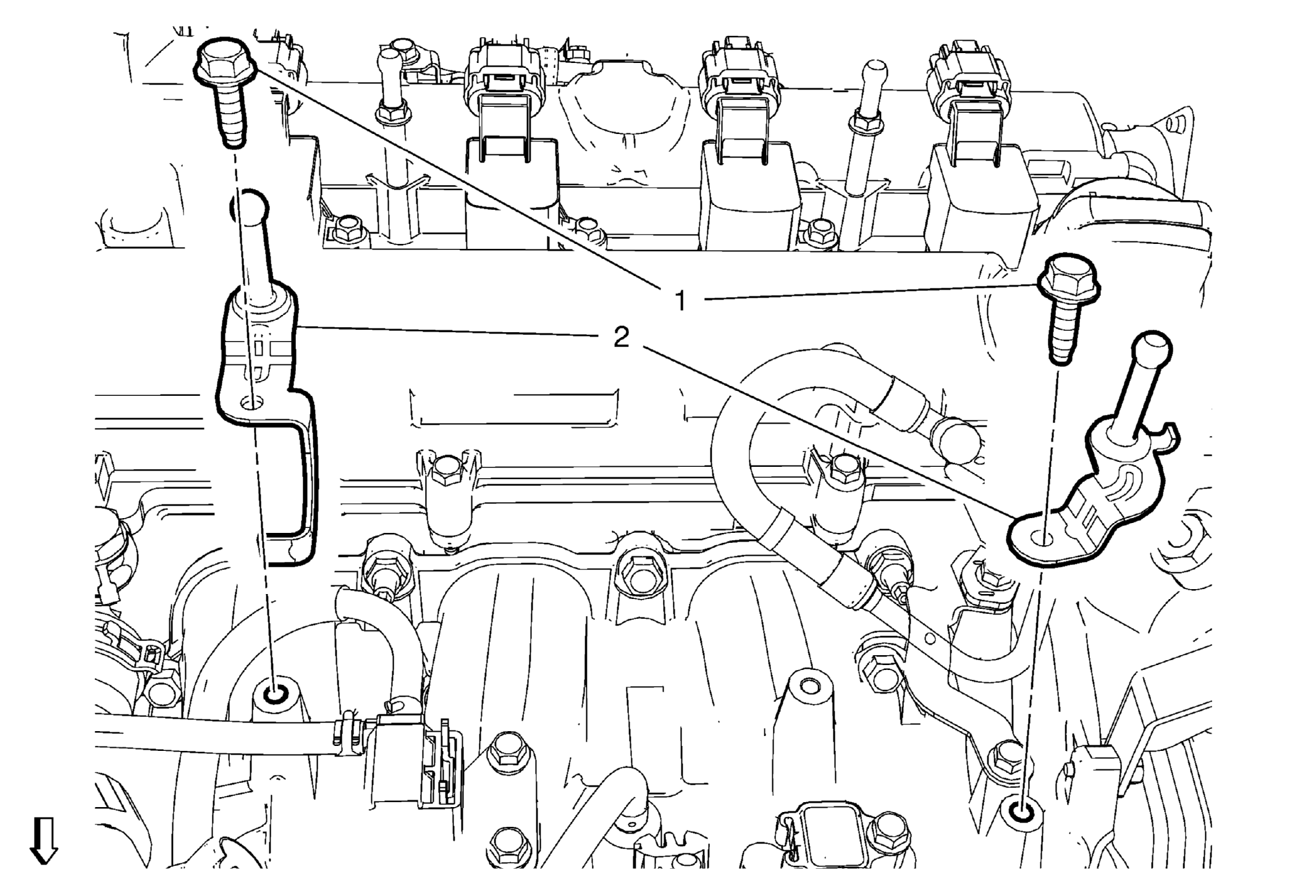

Fig 1: Engine Sight Bracket
GM2743314Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1 Engine Sight Shield Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Engine Sight Shield Bracket
