Turbocharger Coolant Feed Pipe Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

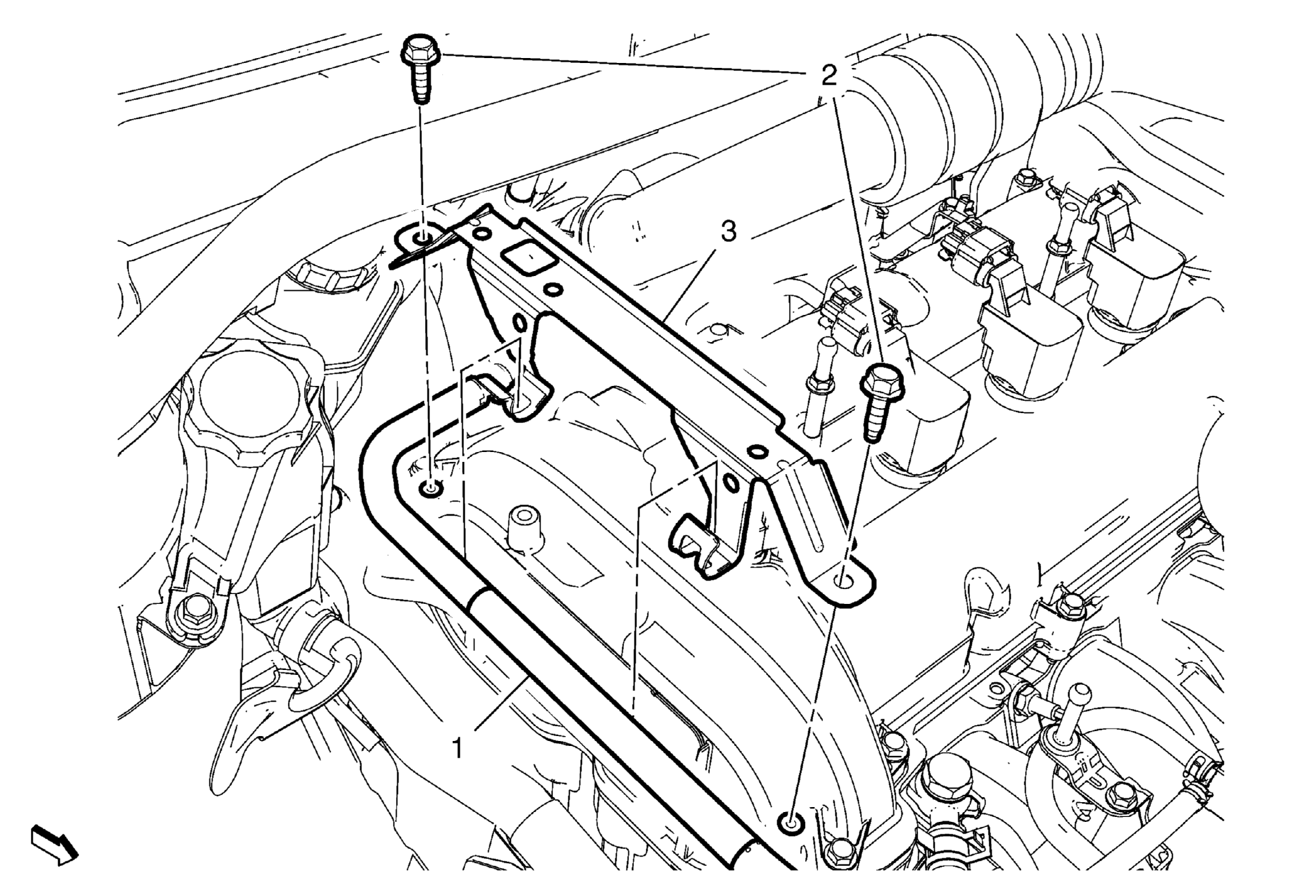

Fig 1: Turbocharger Coolant Feed Pipe Bracket
GM2743307Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  3. Remove the air cleaner outlet rear duct. Refer to Air Cleaner Outlet Rear Duct Replacement .
  4. Hang out the turbocharger coolant feed pipe.
1 Turbocharger Coolant Feed Pipe Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Turbocharger Coolant Feed Pipe
3 Turbocharger Coolant Feed Pipe Bracket
