Air Cleaner Outlet Duct Replacement
WARNING: This page is about a different variant/trim than selected.

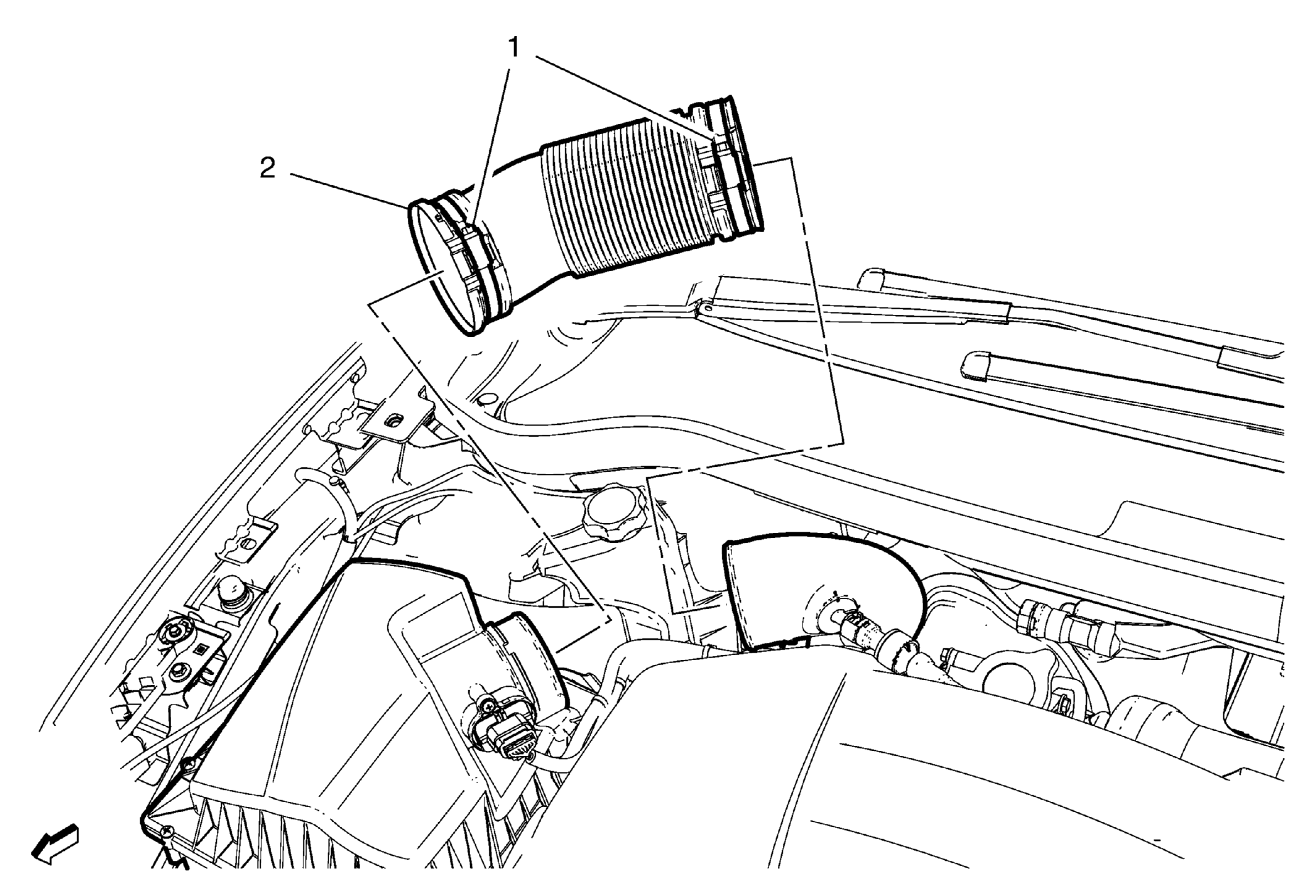

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine sight shield. Refer to Engine Sight Shield Replacement . |
|
| 1 | Air Cleaner Outlet Duct Clamp (Qty: 2)
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. |
| 2 | Air Cleaner Outlet Duct |
