Seat Cushion Cover and Pad Replacement - Rear (Captain)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

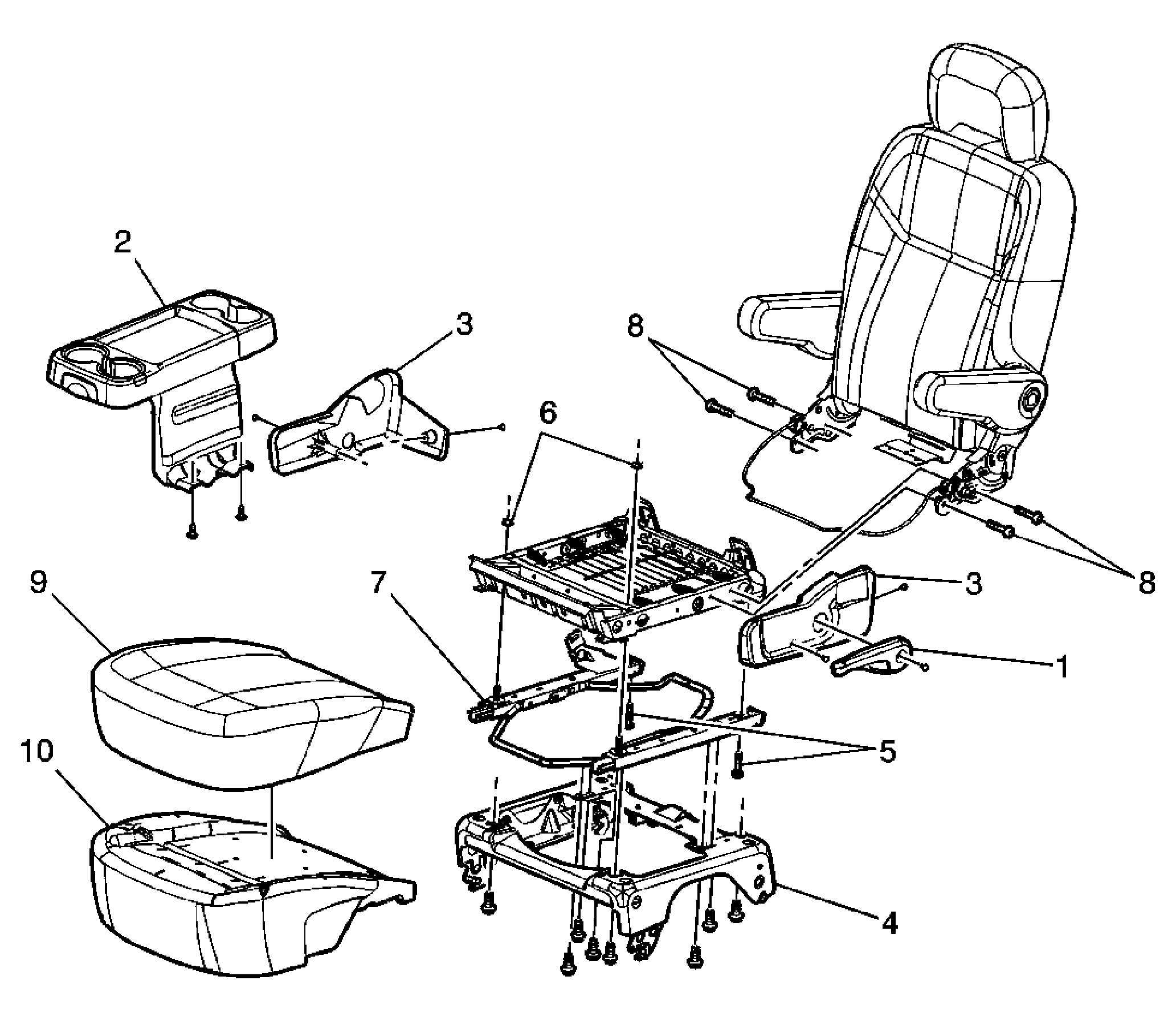

Fig 1: View Of Seat Cushion Cover and Pad - Rear (Captain)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR, if equipped. Refer to SIR Disabling and Enabling Zone 10 and SIR Disabling and Enabling Zone 12 . Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Handle, Rear Seat Recliner Refer to Seat Back Recliner Handle Replacement - Rear (Captain) or Seat Back Recliner Handle Replacement - Rear (Bucket) .
2	Tray, Rear Seat Console Refer to Storage Tray Replacement - Rear (Captain Seat) .
3	Cover, Rear Seat Recliner Lower (Qty: 2) Refer to Seat Back Recliner Cover Replacement - Rear (Captain) or Seat Back Recliner Cover Replacement - Rear (Bucket) .
4	Riser, Rear Seat Refer to Seat Riser Replacement - Rear (Captain) or Seat Riser Replacement - Rear (Bucket) .
5	Bolt, Rear Seat Adjuster (Qty: 6) Tighten: 32 N.m (24 lb ft)
6	Nut, Rear Seat Adjuster (Qty: 2) Tighten: 32 N.m (24 lb ft)
7	Adjuster Assembly, Rear Seat
8	Bolt, Rear Seat Recliner (Qty: 4) Tighten: 32 N.m (24 lb ft)
9	Cover, Rear Seat Cushion Tip: Remove the hog rings that secure the cover to the pad.
10	Pad, Rear Seat Cushion
