Seat Back Cover and Pad Replacement - Rear (Bucket)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

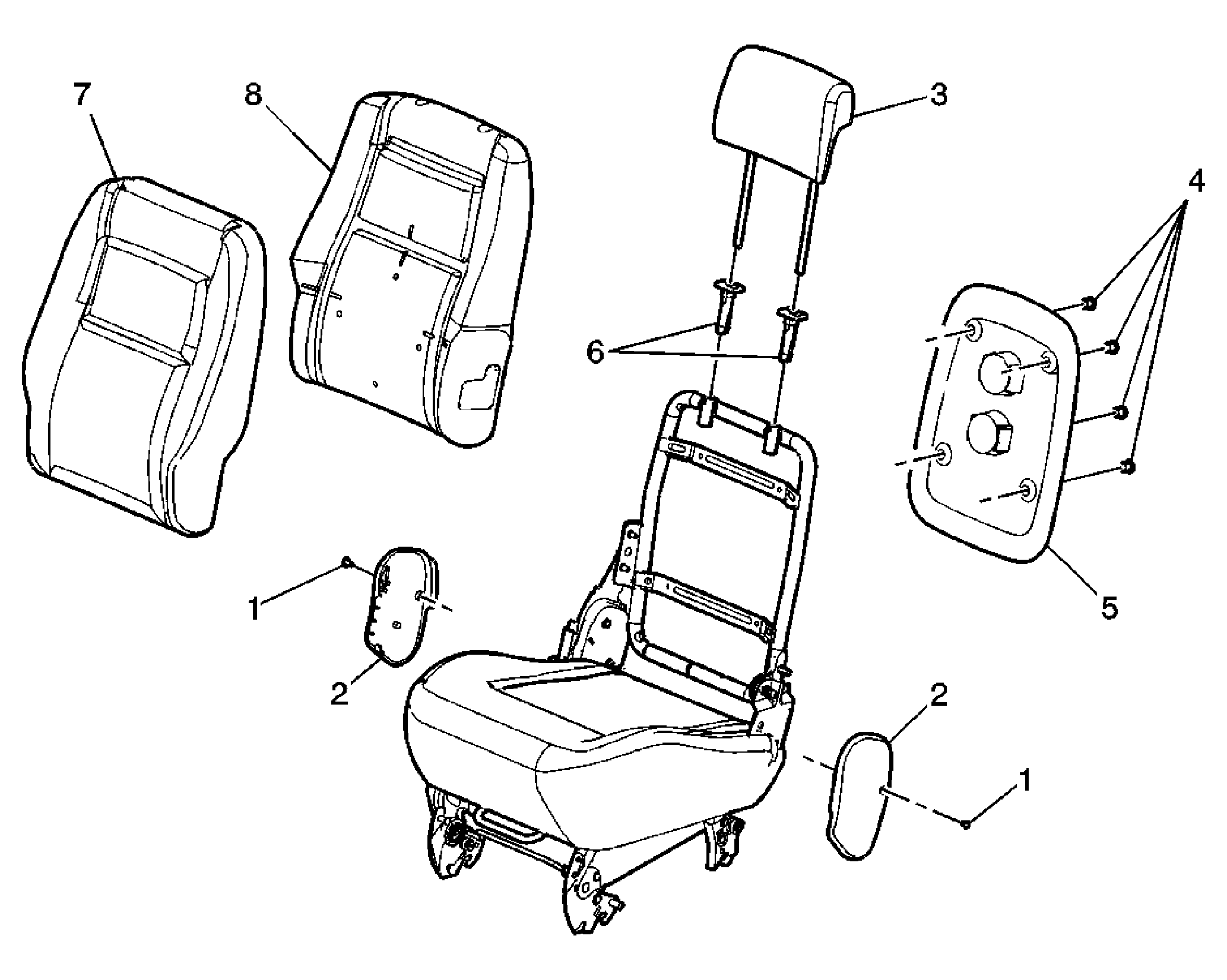

Fig 1: View Of Seat Back Cover and Pad - Rear (Bucket)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Screw, Rear Seat Recliner Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Cover, Rear Seat Recliner Outer (Qty: 2)
3	Head Restraint, Rear Seat Back Refer to Head Restraint Replacement - Rear Seat (Captain) or Head Restraint Replacement - Rear Seat (Bucket) .
4	Retainer, Rear Seat Back Protector (Qty: 4)
5	Protector, Rear Seat Back
6	Guide, Head Restraint (Qty: 2)
7	Cover, Rear Seat Back Cushion Tip: Disengage the retainers that secure the seat cover to the seat frame. Remove the hog rings that secure the seat back cushion cover to the seat back cushion pad.
8	Pad, Rear Seat Back Cushion
