Seat Cushion Cover and Pad Replacement - Rear (Bucket)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

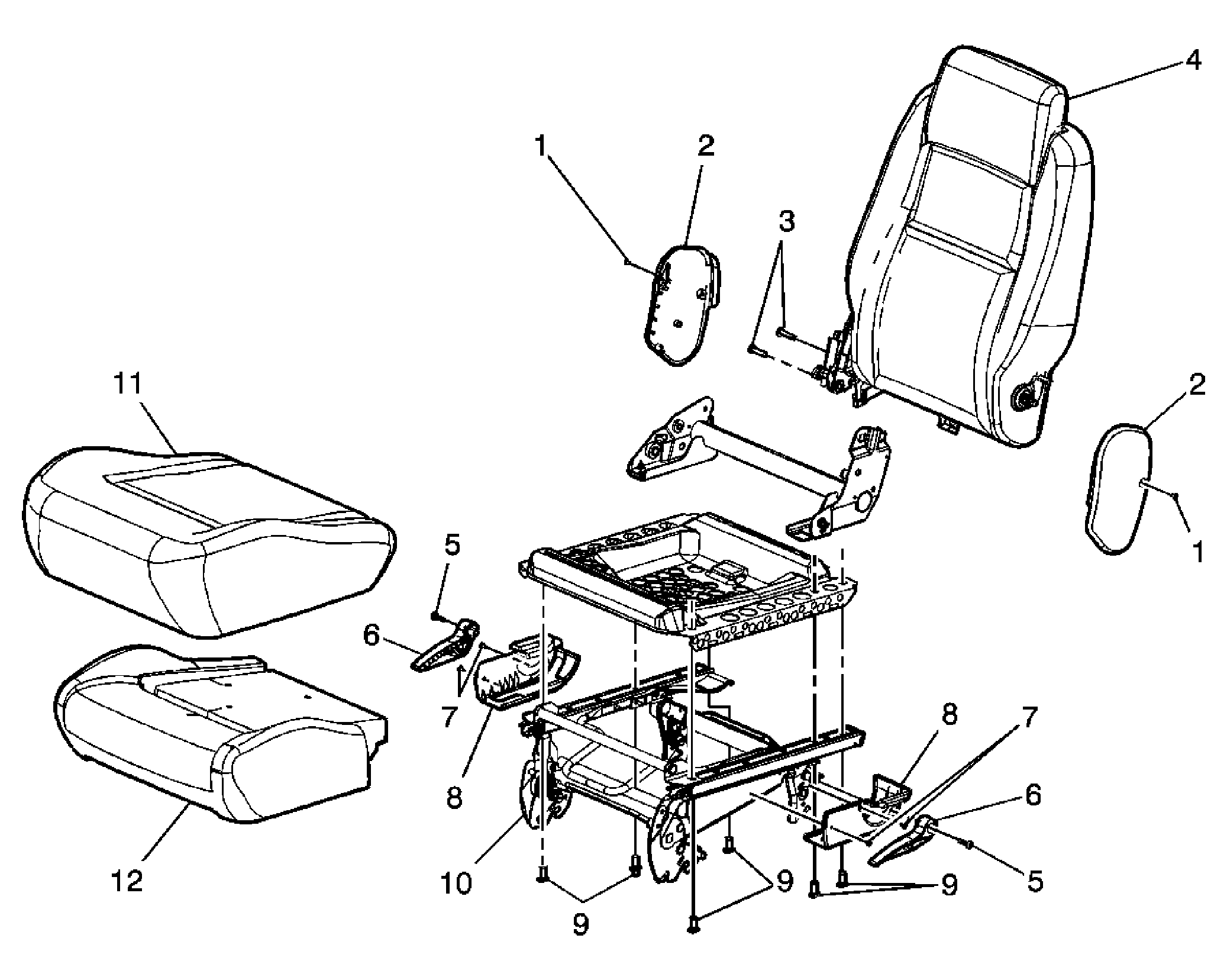

Fig 1: View Of Seat Cushion Cover and Pad - Rear (Bucket)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear .
1	Screw, Rear Seat Recliner Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Cover, Rear Seat Recliner Outer (Qty: 2)
3	Bolt, Rear Seat Back Recliner (Qty: 2) Tighten: 32 N.m (24 lb ft)
4	Seat Back Assembly Tip: Separate the rear seat back from the rear seat cushion.
5	Screw, Rear Seat Back Recliner Handle Tighten: 2 N.m (18 lb in)
6	Handle, Rear Seat Back Recliner
7	Screw, Rear Seat Adjuster Cover (Qty: 4) Tighten: 2 N.m (18 lb in)
8	Cover, Rear Seat Adjuster Cover (Qty: 2)
9	Bolt, Rear Seat Riser (Qty: 6) Tighten: 45 N.m (33 lb ft)
10	Riser Assembly, Rear Seat
11	Cover, Rear Seat Cushion Tip: Disengage the retainers that secure the seat cover to the seat frame. Remove the hog rings that secure the seat cushion cover to the seat cushion pad.
12	Pad, Rear Seat Cushion
