Replacing the bellows of the output shaft

Precondition

• Output shaft removed.

Preliminary work

• Refer to DETERMINING THE MANUFACTURER OF THE OUTPUT SHAFT .
• Refer to INSERTING THE OUTPUT SHAFT .

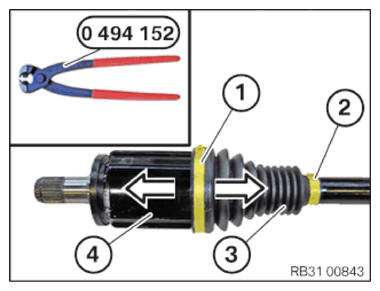

• Release the clamps (1) and (2), and cut and remove them with the special tool 0 494 152 (32 1 260) in a transverse direction to the ear.
• Release the bellows (3) on the transmission end in the arrow direction from the joint housing (4).
• Pull the joint housing (4) down in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the circlip (1) for the tripod (2) from the output shaft (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Seal bore of output shaft with a screw (2).
• Pull down tripod (1) using special tool 0 493 994 (11 8 310)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove traces of lubricating grease.
• Pull down the bellows (1) at the transmission end from the output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the circlips (1) and (2) or cut open across the ear and remove.
• Pull the bellows (3) down in the arrow direction from the wheel-sided constant velocity joint.
• Clean accessible areas of the constant velocity joint (1) and the output shaft (2) with a clean, lint-free cloth.
• Replace bellows.

  Parts:  gaiter

• Slide the bellows onto the output shaft (2).
• Grease the constant velocity joint (1).

Lubricating grease, Optitemp 2 LN 584 LO

100 g, Bag

83190447919

Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the sealing surfaces on the bellows and on the joint are clean, dry and free from grease during installation.
• Position the bellows (3) on the constant velocity joint.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the suitable commercially available tool carefully between the bellows and the output shaft and let the excess pressure in the bellows (3) be released.
• Replace the circlips (1) and (2).

  Parts:  Clamps

• Position the circlips (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the circlips (1) and (2) on the bellows (3).
• Replace the bellows (1) and the circlips.

  Parts:  Bellows, circlips

• Slide the circlips onto the output shaft (2).
• Slide the bellows (1) onto the output shaft (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean tripod (2).
• Position the tripod (2) on the output shaft in such a way that the flat side (1) points to the circlip.

  Courtesy of BMW OF NORTH AMERICA, INC.

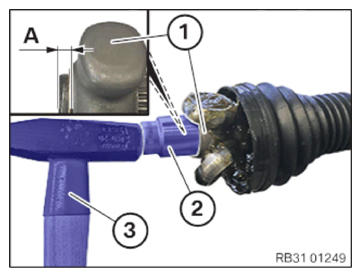

• Tap the tripod (1) with the standard tool (2) and the commercially available tool (3) only so far onto output shaft until the circlip can be mounted.

Courtesy of BMW OF NORTH AMERICA, INC.

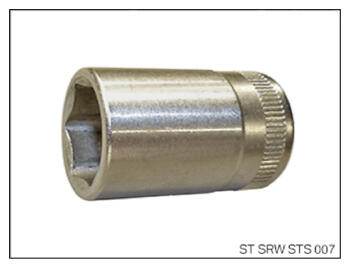

Standard tool: Socket wrench for hexagon head

Socket wrench for hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Socket wrench for hexagon

SW24

For output shafts of the manufacturer neapco, the dimension (A) must not be exceeded.

Dimension (A) = 4.9 mm

• Replace the circlip (1).

  Parts:  Circlip

• Mount the circlip (1) for the tripod (2) on the output shaft (3).
• Grease tripod (2) and the joint housing (see table).

  Courtesy of BMW OF NORTH AMERICA, INC.

• The lubricating grease and the quantities in the table must be observed when greasing the wheel-sided  joint!

Part number of bellows	8 680 223	8 488 704	8 657 288
Part number of lubricating grease	2 286 018	2 179 708	2 179 708
Amount of lubricating grease	140 g	165 g	165 g

Lubricating grease Renolit CX-TP 1

100 g, Bag

83192286018

Lubricating grease One Lube Improved

110 g, Bag

83232179708

• Slide the joint housing (4) in the arrow direction onto the tripod.
• Mount the bellows (3) in the arrow direction on the joint housing (4).
• Position the circlips (1) and (2) on the bellows (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

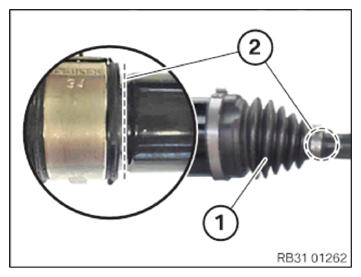

• Position the bellows (1) for the taper (2) on the output shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

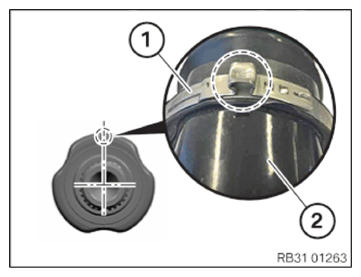

• Position the hook fastener of the circlip (1) as shown in the center on the joint housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Check the position of the joint housing (4) and the bellows (3), correct if necessary.
• Tighten the circlips (1) and (2).
