Determining the manufacturer of the output shaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The bellows of the wheel-side joint must not be replaced individually by the manufacturer Neapco for output shafts.
The bellows of the wheel-side joint must not be replaced individually by the manufacturer Neapco for output shafts.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Check

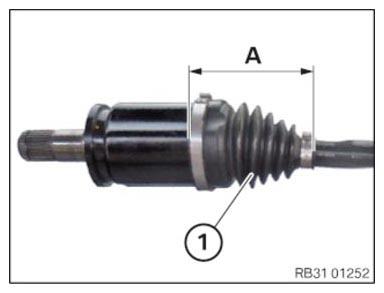

- Determine the dimension (A) of the bellows (1) at the transmission end.
Result
» Dimension (A) = 106 mm (Manufacturer Neapco)
Measure
- Bellows (1) at the transmission end must not be replaced individually in the case of output shafts by the manufacturer Neapco.
Result
» Dimension (A)= 126 mm
Measure
- Bellows (1) at the transmission end may be replaced individually.
