Notes on removing and installing Low Profile band clamps

Special tools required:

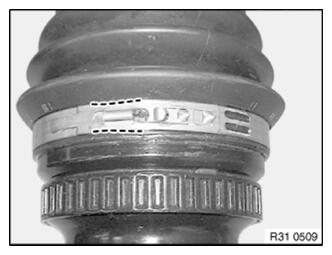

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

Courtesy of BMW OF NORTH AMERICA, INC.

Depending on the design of the Low Profile band clamps, a different special tool (pliers) is needed for installation.

Identify band clamp and find required special tool.

Band clamp type A = pliers 31 5 200

Band clamp type B = pliers 2 413 949

Courtesy of BMW OF NORTH AMERICA, INC.

Installation (type A):

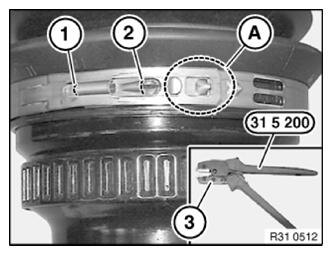

Position Low Profile band clamp in installation position (A) on bellows.

Place special tool 31 5 200 on lugs (1, 2).

NOTE: Make sure that the movable leg (3) of the special tool is placed on lug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of bellows and Low Profile band clamp.

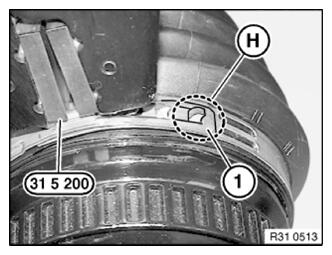

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation (type B):

Position Low Profile band clamp in installation position on bellows.

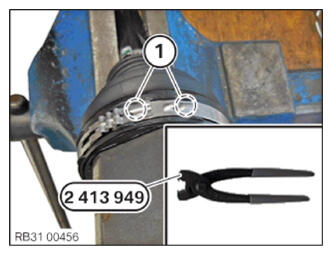

Place special tool 2 413 949 on lugs (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of bellows and Low Profile band clamp.

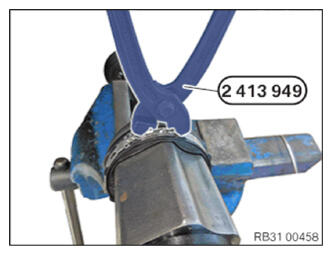

Press Low Profile band clamp together with the special tool 2 413 949 until the hook fastener engages.

Relieve tension on special tool and remove.

Check hook fastener; if necessary, repeat operation with new Low Profile band clamp.
