Remove swivel bearing
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
NOTE:
TECHNICAL INFORMATION
The swivel bearing camber correction is used to correct the camber values to +/-30 minutes. To be used only if the camber tolerance values are exceeded or undershot.
The swivel bearing camber correction is used to correct the camber values to +/-30 minutes. To be used only if the camber tolerance values are exceeded or undershot.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to DETACHING THE BRAKE HOSE AT THE FRONT .
- Refer to RELEASING THE FRONT BRAKE CALIPER .
- Refer to REMOVING FRONT BRAKE DISC .
- Refer to PARTIALLY REMOVING THE FRONT WHEEL SPEED SENSOR .
- Refer to LOOSENING THE TIE ROD FROM THE SWIVEL BEARING .
- Refer to SLACKENING THE WISHBONE ON THE FRONT SUBFRAME .
- Refer to RELEASING THE WISHBONE FROM THE SWIVEL BEARING .
- Refer to RELEASING TENSION STRUT FROM SWIVEL BEARING .
- Refer to REMOVING BRAKE GUARD PLATE, FRONT .
- Refer to DETERMINING INSTALLED VARIANT OF SWIVEL BEARING .
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

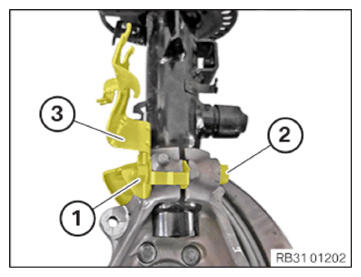

- Release nut (1) .
- Pull out screw (2) .
- Remove the holder (3)
.

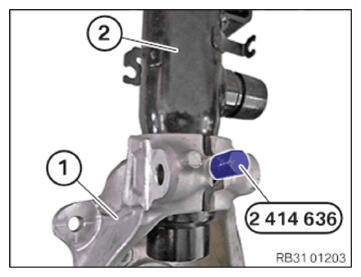

- Spread the swivel bearing (1) with the special tool 2 414 636 .
- Pull down the swivel bearing (1) from the spring strut (2) and remove it.
