Determining installed variant of swivel bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The brake guard plate has been removed.
- Possible variants of the swivel bearing:

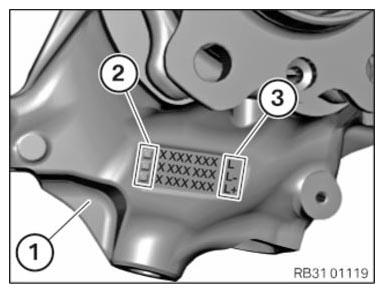

The version of swivel bearing (1) is marked in the area (2) by a punch mark.
- Observe the identification in the area (3).
Left swivel bearing:
- L = swivel bearing (standard part)
- L- = Negative swivel bearing camber correction
- L+ = Positive swivel bearing camber correction
Right swivel bearing:
- R = swivel bearing (standard part)
- R- = Negative swivel bearing camber correction
- R+ = Positive swivel bearing camber correction
