Slackening the wishbone on the front subframe

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

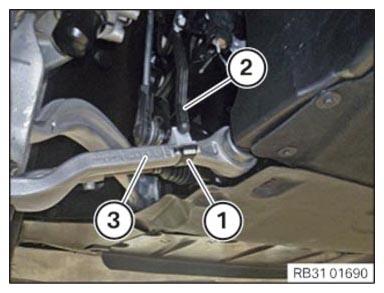

Unlock the holder (1) of attachment rod (2) for the ride height sensor and release from the wishbone (3).

Courtesy of BMW OF NORTH AMERICA, INC.

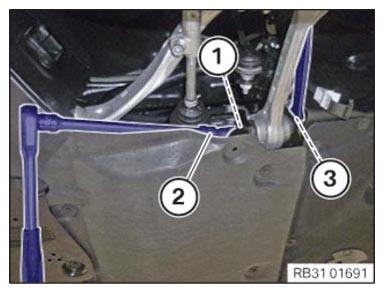

Slacken the screw (1) using the standard tool (2). In doing so, counter support at the nut (3).
Standard tool: Pivoting extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Pivoting extension 1/2 inch

Courtesy of BMW OF NORTH AMERICA, INC.

Pivoting extension 1/2 inch
