Install the wiring harness section of the transmission wiring harness
Wiring harness section of transmission wiring harness

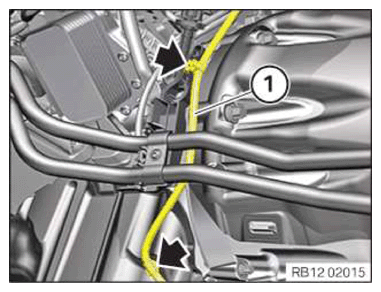

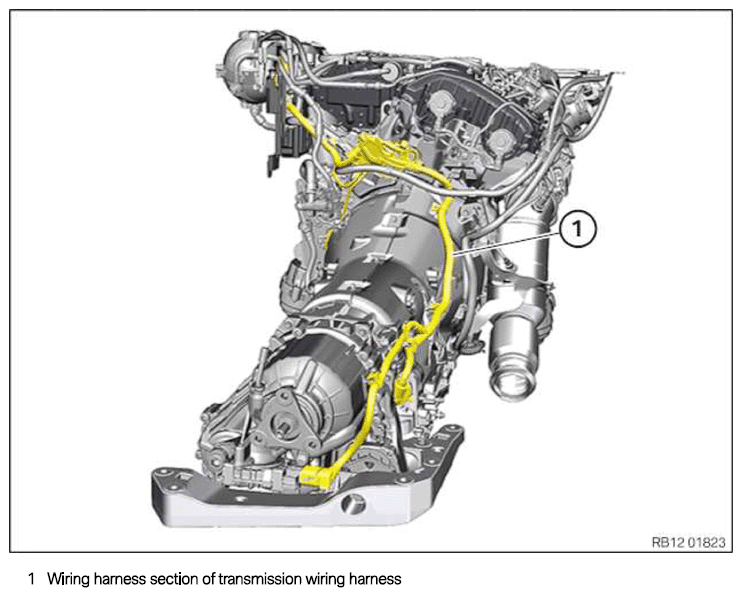

- Insert and install the wiring harness (1) for the transmission module.
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).

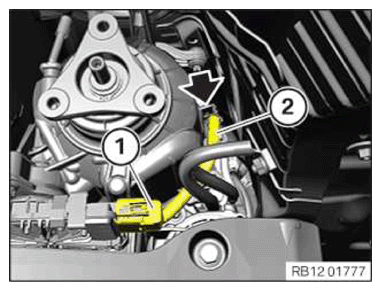

- Connect connectors (1) and lock.
The connector (1) must engage audibly.

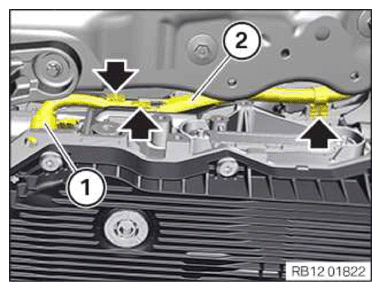

- Feed in and install the wiring harness section (2) of the supply module.
- Secure clamps (arrow).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Fastening the transmission

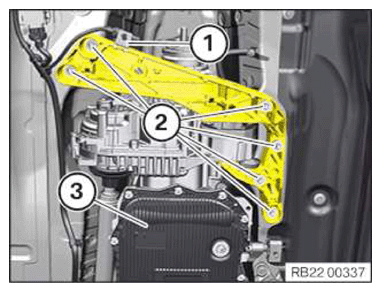

- Move the transmission (3) to the installation position.
- Replace screws (2).
Parts: Screws
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Secure the cable with the clamp (1).
- Loosening the luggage strap (1).

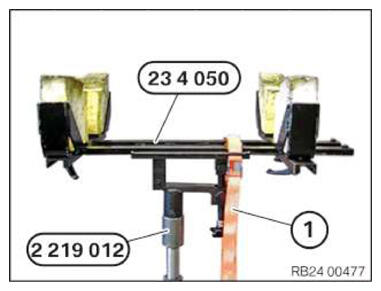

- Remove special tools 2 219 012
and 0 495 498 (23 4 050)
.

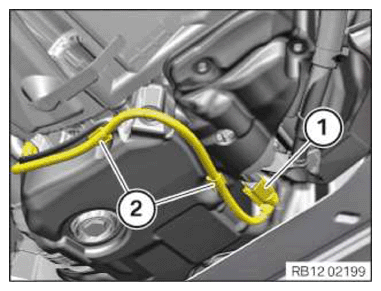

- Secure clamps (2).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

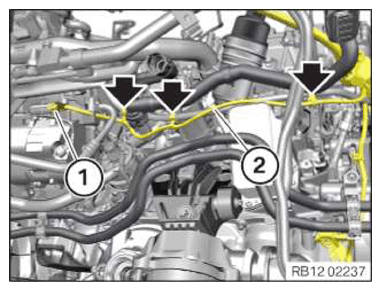

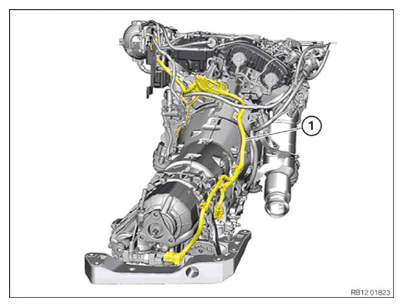

- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure clamps (arrow).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

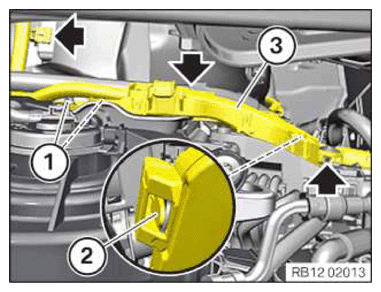

- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure the locking mechanism (2) engages audibly.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Secure the clamps (arrows).

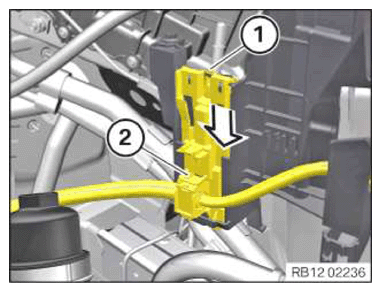

- Insert cable clip (2) in direction of arrow and install.
The lock (1) must audibly engage.

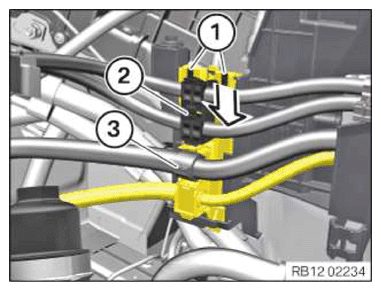

- Guide in and lock cable clip (3).
The cable clip (3) must engage audibly.
- Insert cable clip (2) in direction of arrow and install.
The locks (1) must engage audibly.
