Install the transmission bearing support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

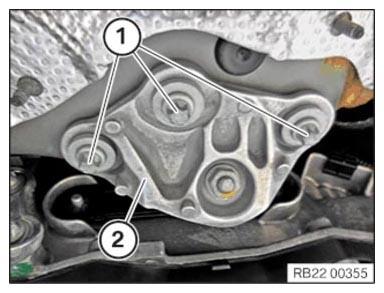

Position transmission bearing support (2).
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Transmission bearing support to body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

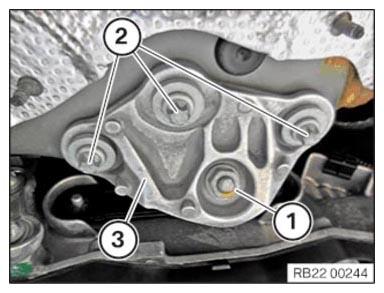

Install transmission bearing support holder (3).

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Transmission bearing support to body
M8	Tightening torque	19 Nm

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Rubber mount to transmission bearing support
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
