Installing the screw plug on the cylinder head

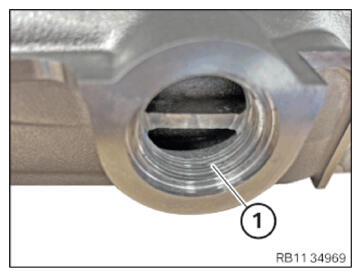

• Clean the thread (1)  with the brake cleaner.
  CONSUMABLE SPECIFICATION



  Brake cleaner 2.0	500 ml, Spray can	83192365214
  	20, Canister	83192365215

  Courtesy of BMW OF NORTH AMERICA, INC.

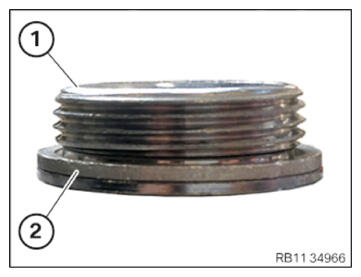

• Replace the screw plug (1)  and the sealing ring (2)  .

  Parts:  Screw plug, sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

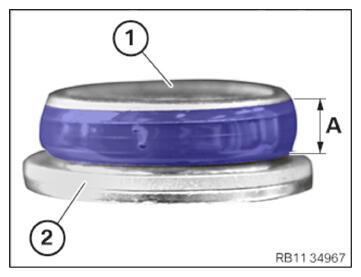

• Wet the screw plug (1)  in area (A) with the screw locking agent.
  ADHESIVE SPECIFICATION



  Screw lock Loctite Stick 243, medium strength

  10 ml, Bottle

  83192210339

• Position the sealing ring (2)  correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

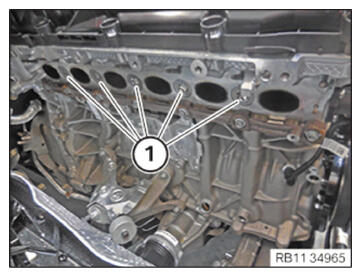

• Insert and install the screw plugs (1)  .
• Tighten the screw plugs (1)  with snug torque.
  TIGHTENING TORQUE SPECIFICATION



  Screw plugs on cylinder head
  M28X1.5 Replace the screw plugs. Wet the screw plugs with Loctite. (Loctite 243)	Tightening torque	25 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

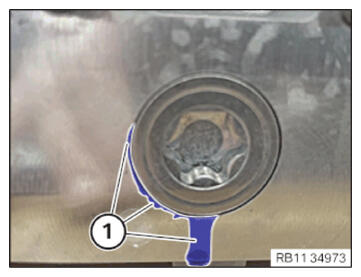

• Remove the excess screw locking agent (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

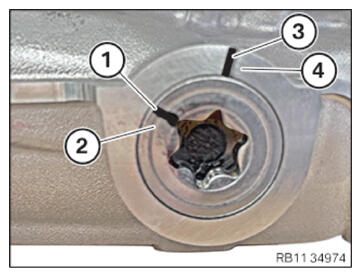

• Attach the mark (1)  to the screw plug (2)  .
• Attach the mark (3)  to the cylinder head (4)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten oil drain plug (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Screw plug on cylinder head
  M28X1.5	Angle of rotation	60°

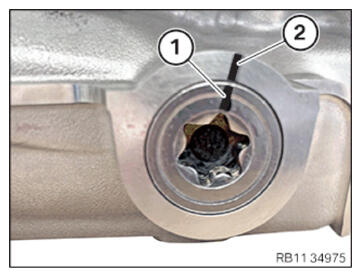

• The marks (1)  and (2)  must align.

  Courtesy of BMW OF NORTH AMERICA, INC.
