Attaching the bracket of the positive battery cable

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

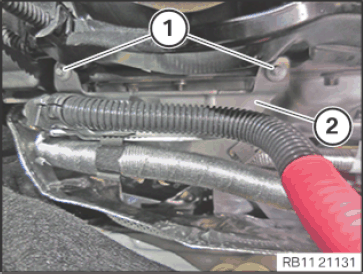

Feed in the bracket (2) of positive battery cable and install.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Holder, positive battery cable to cylinder head cover
6X18	Tightening torque	6 Nm
