Installing the adapter for the engine ventilation line with the heating element on the exhaust turbocharger

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

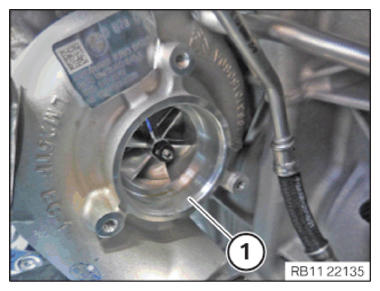

Clean sealing surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.

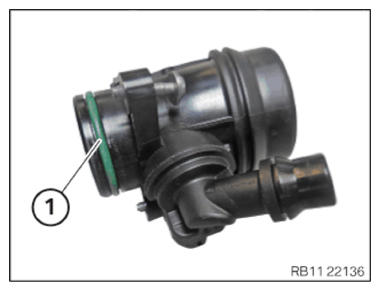

Replace the seal (1) using the special tool 0 496 714 (00 9 030) .
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the connecting brackets (2) with the heating element at the exhaust turbocharger.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Engine ventilation line adapter with heating element on exhaust turbocharger
M6x26 screw	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING CHARGE AIR LINE .
Refer to INSTALLING CLEAN AIR PIPE .
Refer to INSTALLING ENGINE VENTILATION LINE .
Refer to INSTALLING INTAKE FILTER HOUSING .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING ACOUSTIC COVER .
