Installing the feed line for the transmission oil cooler

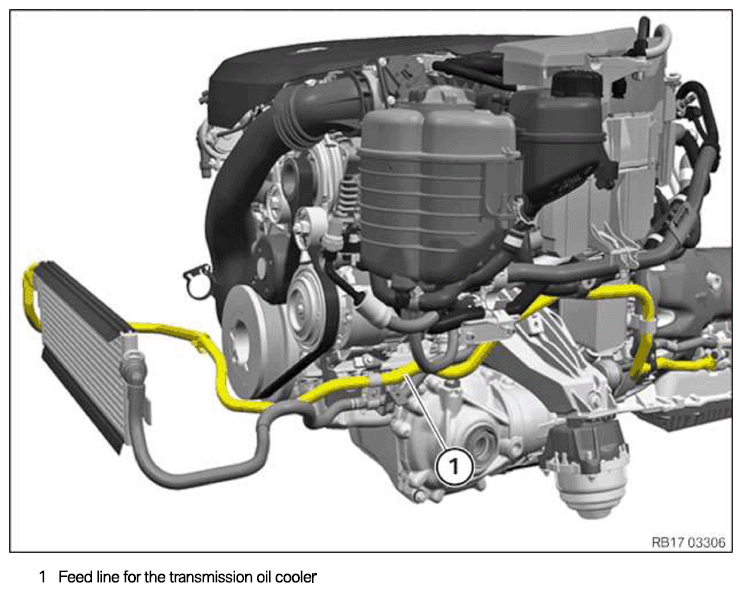

Feed line for the transmission oil cooler

Courtesy of BMW OF NORTH AMERICA, INC.

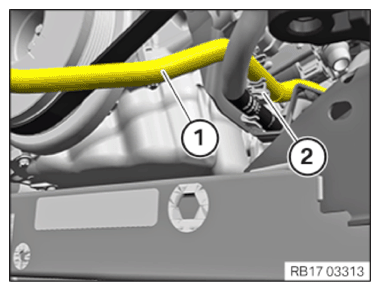

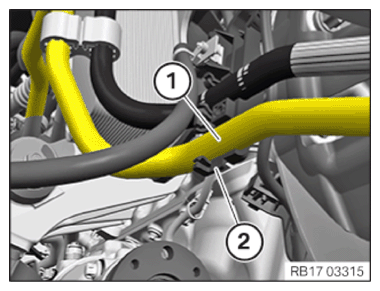

• Feed the feed line (1) in for the transmission oil cooler carefully  with the help of a support person and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

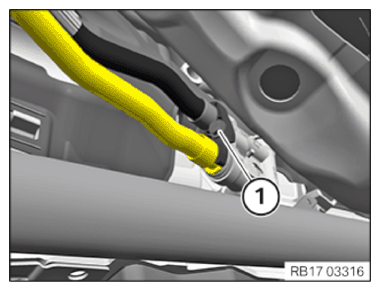

• Replace the sealing ring (1) of the feed line (2) for the transmission oil cooler.

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

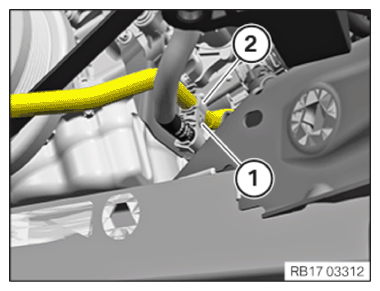

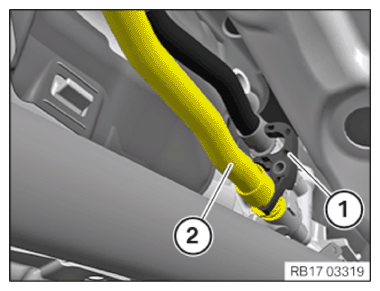

• Feed in the holder (1) in the feed line (2) for the transmission oil cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

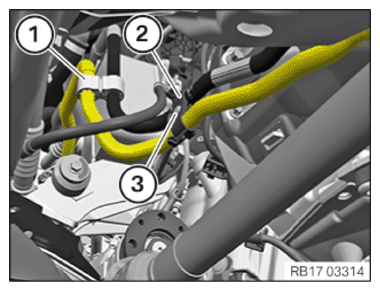

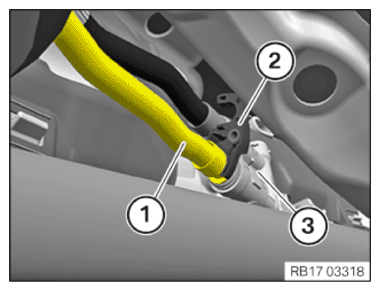

• Connect the feed line (1) for the transmission oil cooler with the holder (2) to the thermostat (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

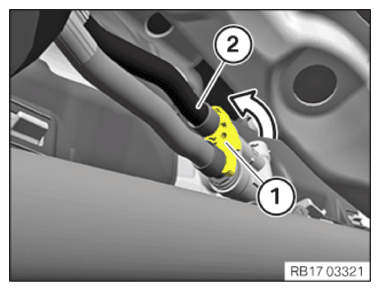

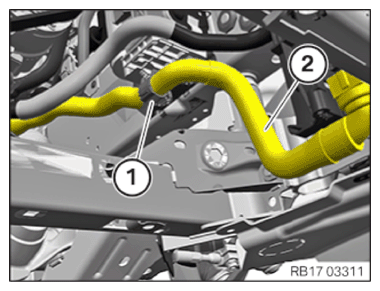

• Feed the holder (1) in arrow direction in the return line (2) for the transmission oil cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

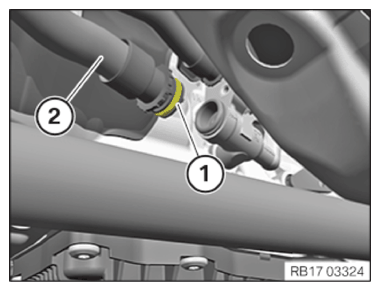

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Transmission oil lines to thermostat/automatic transmission
  M6x25	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

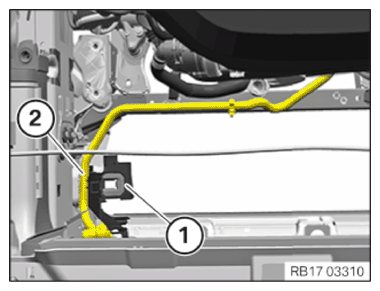

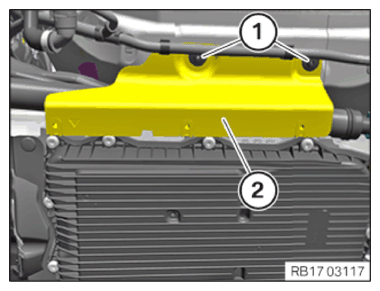

• Attach the feed line (1) for the transmission oil cooler in the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the holder (2).
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATION



  Holder for transmission oil line
  Screw	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close the rubber retainer (1).
  NOTE: Schematic diagram is for example purposes.
  Some parts may differ in certain details.
• Guide in and install retaining plate (2).
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Retaining plates for underbody cover
  Sheet metal nut/plastic nut Replace nuts.	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the feed line (1) for the transmission oil cooler in the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the holder (2).
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATION



  Holder for transmission oil line
  Screw	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the coolant line (2) in the holder (1).
• Lock holder (1).

  The holder (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

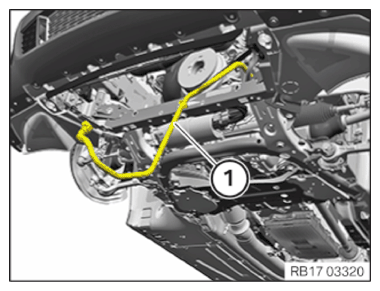

• Press the radiator bracket (1) on the right carefully  to the side and feed in the feed line (2) for the transmission oil cooler.

  Courtesy of BMW OF NORTH AMERICA, INC.

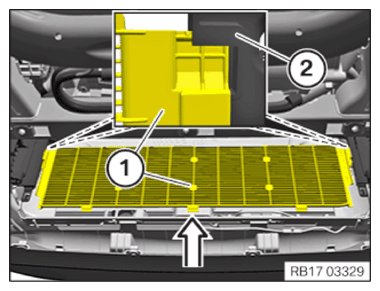

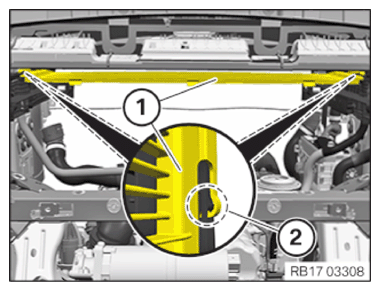

• Feed the stone chip guard (1) in arrow direction into the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock the stone chip guard (1) in the marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE RADIATOR FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE TRANSMISSION OIL COOLER .
• Refer to INSTALLING THE COOLER OF THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to IF INSTALLED: INSTALLING THE ENGINE OIL COOLER .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
