Installing the transmission oil cooler

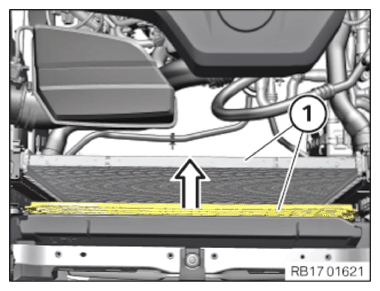

- Tilt and hold the cooling module (1) in the arrow direction for better accessibility.

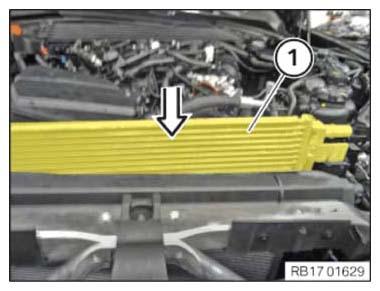

- Insert the transmission oil cooler (1) in the arrow direction.

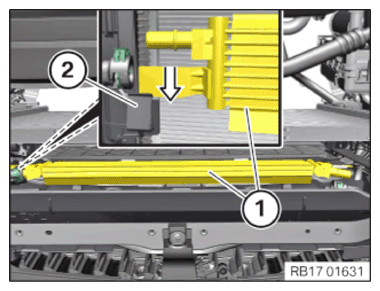

- Feed in the transmission oil cooler (1) at the holder (2) in the arrow direction.

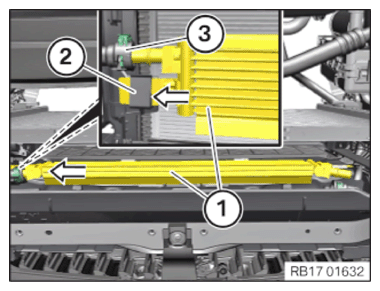

- Feed in the transmission oil cooler (1) at the holder (2) and the transmission oil line (3) in the arrow direction.

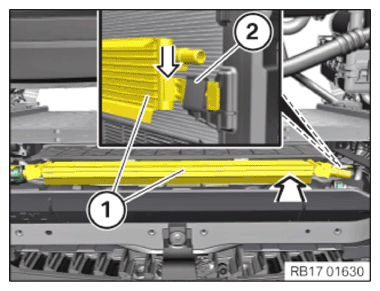

- Feed in the transmission oil cooler (1) at the holder (2) in the arrow direction and install it.

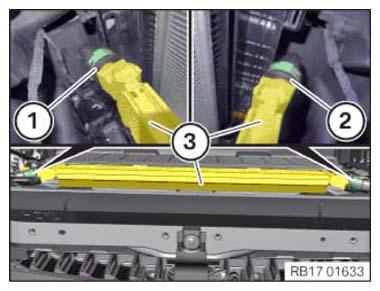

- Attach the transmission oil line (2) to the transmission oil cooler (3) and lock.
- Attach the transmission oil line (1) to the transmission oil cooler (3) and lock.

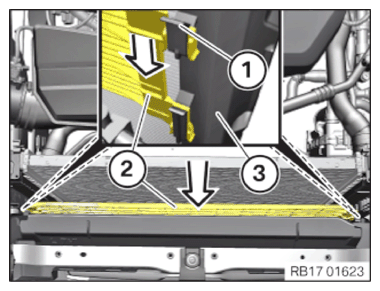

- Feed in the stone chip guard (2) at the holders (3) in the arrow direction and install it.
The locks (1) must engage audibly.

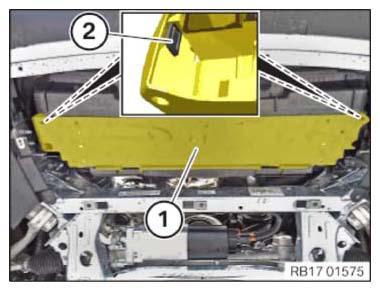

- Guide in and install cover (1).
- Make sure that the locks (2) engage correctly.

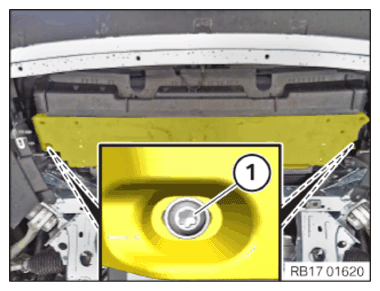

- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
| Cooling module cover on holder | ||
| D6X20 | Tightening torque | 6 Nm |
Follow-up work
- Refer to INSTALLING THE COOLER OF THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
