Installing the coolant feed line for the turbocharger

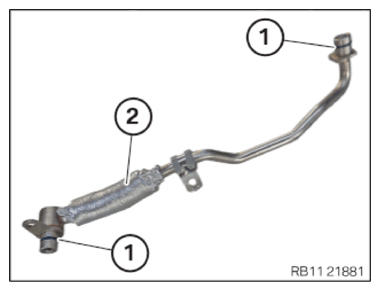

Using the special tool 0 496 714 (00 9 030) , replace the sealing rings (1) on the coolant feed line (2) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

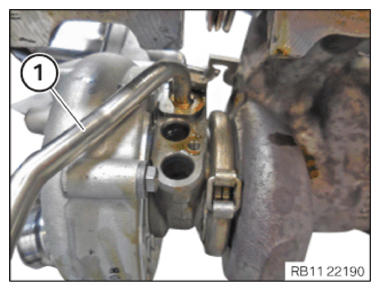

Insert the coolant feed line (1) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

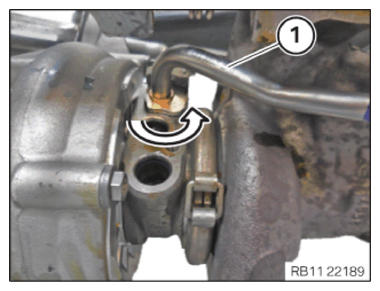

Twist the coolant feed line (1) in the arrow direction .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE OIL FEED LINE FOR THE TURBOCHARGER .
Refer to INSTALLING THE COOLANT RETURNING LINE FOR THE TURBOCHARGER .
Refer to INSTALLING TURBOCHARGER .
Refer to INSTALLING THE OIL RETURN LINE FOR THE TURBOCHARGER .
Refer to INSTALLING CATALYTIC CONVERTER .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to INSTALLING REINFORCEMENT STRUT .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
Refer to INSTALLING THE OXYGEN SENSOR MONITOR .
Refer to INSTALLING LAMBDA OXYGEN SENSOR .
Refer to ATTACHING THE BRACKET OF THE POSITIVE BATTERY CABLE .
Refer to INSTALLING THE ADAPTER FOR THE ENGINE VENTILATION LINE WITH THE HEATING ELEMENT ON THE TURBOCHARGER .
Refer to INSTALLING CHARGE AIR LINE .
Refer to INSTALLING CLEAN AIR PIPE .
Refer to INSTALLING ENGINE VENTILATION LINE .
Refer to INSTALLING INTAKE FILTER HOUSING .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CHECKING ENGINE OIL LEVEL .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
