Installing complete sliding/tilting sunroof

• In order to prevent groaning noses, secure all screws (1)  with the plastic washers (2)  prior to installation.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Heavy component  .
  Heavy components can lead to injury or damage  .

  • Remove and install heavy components with the aid of another person/other persons.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the sliding/tilting sunroof into the vehicle through the front passenger door and position with the assistance of a second person.
• Ensure that no cables are jammed during the installation.
• Screw in all screws along the line (1)  by several turns.

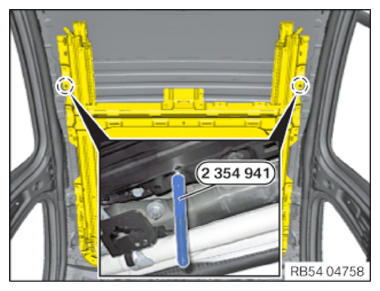

• Insert the special tool 2 354 941  and align the panorama glass roof (1)  with the roof.

  Courtesy of BMW OF NORTH AMERICA, INC.

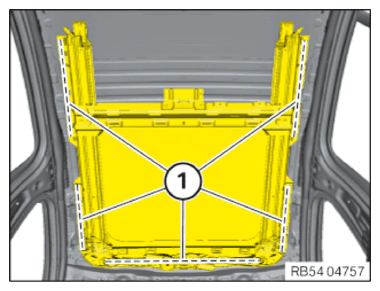

• Tighten all the screws along the marked areas (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Slide/tilt sunroof frame to body
  M6	Tightening torque	5.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

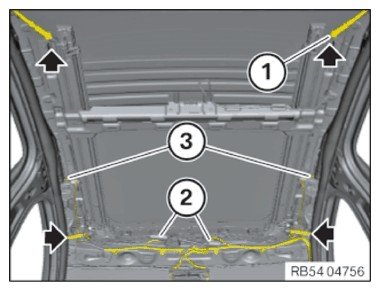

• Connect all four water drain hoses (1)  (arrows).
• Connect the plug connections (3)  of the head airbags and clip in the associated cables.
• Connect the plug connections 2 of the engines and clip in the associated cables.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HEADLINING WITH THE SLIDING/TILTING SUNROOF (LOWERED) .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL .
• Refer to INSTALLING 3RD BRAKE LIGHT TRIM .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING GLASS SLIDE/TILT SUNROOF PANEL .
• Refer to CHECKING THE SETTING OF THE GLASS SLIDE/TILT SUNROOF PANEL .
• Refer to ADJUSTING GLASS SLIDE/TILT SUNROOF PANEL .
• Refer to INSTALLING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
• Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
