Initializing the glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Prerequisites for initializing the sliding/tilting/panoramic glass sunroof
- The following requirements must be met for smooth initialization:
| Vehicle interior temperature | 15°C - 30°C |
| On-board voltage | 12 V - 15 V |
| Vehicle condition | - The vehicle is not standing on its own wheels. |
| - Vehicle is in a horizontal position. | |
| - Speed 0 km/h (vehicle must not roll) | |
| - Remote control is in the vehicle | |
| - Terminal 15 is switched on or the vehicle is in the PFW state Residing | |
| Operating point | - FZD button |
| - Diagnostic function: "Initialize sliding/tilting sunroof" | |
| Miscellaneous | No other work may be carried out on the vehicle during initialization in order to avoid impacts or vibrations. |
NOTE:
TECHNICAL INFORMATION
The following prerequisites are the basis for a correct initialization and must be strictly observed.
The following prerequisites are the basis for a correct initialization and must be strictly observed.

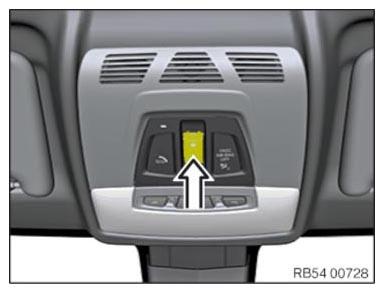

- Press and hold the switch in the "vent position" direction.
The glass slide/tilt sunroof moves to the vent position.
- In the event of a delayed start or sudden stop of the glass slide/tilt sunroof, keep the switch pressed in the "vent position" direction.
- Continue to keep the switch pressed during the entire test module.
- After reaching vent position (A), continue to press and hold the switch for about 30 s.
The initialization starts:
- The glass slide/tilt sunroof moves from the vent position (A) in the direction of position (B).
- Screen (sliding headliner) fully closes.
- Screen (sliding headliner) fully opens.
- The glass slide/tilt sunroof moves to the "closed" position.
- The glass slide/tilt sunroof moves to the "open" position and immediately back to the "closed" position.
- After a brief pause, the screen fully closes.
The initialization is complete when the glass slide/tilt sunroof and the screen are completely closed.
- Release the switch.NOTE: TECHNICAL INFORMATION
If the switch is released in the meantime, repeat the initialization. Following successful initialization, the corresponding messages in the Check Control and the control display extinguish. - Carry out functional check (one-touch mode, anti-trapping protection and, if necessary, comfort function).
- Press and hold the switch in the "Vent Position" direction.
The glass slide/tilt sunroof shifts to vent position.
- In the event of a delayed start or sudden stop of the glass slide/tilt sunroof, continue operating the switch in the "Vent Position" direction.
- Continue to operate the switch during the entire ABL.
- After having reached the vent position (A) continue to operate the switch for approximately 30 s (initialization starts).
- The glass slide/tilt sunroof shifts from vent position (A) toward position (B).
- Screen (sliding headliner) fully closes.
- Screen (sliding headliner) fully opens.
- Glass slide/tilt sunroof shifts to "closed" position.
- The glass slide/tilt sunroof shifts to the "Open" position and immediately returns to the "Closed" position.
- After a brief pause, the screen fully closes.
The initialization is completed once the glass slide/tilt sunroof and the screen have completely closed.
- Release the switch.NOTE: TECHNICAL INFORMATION
If the switch is released in the meantime, repeat the initialization. Following successful initialization, the corresponding messages in the Check Control and the control display extinguish. - Carry out functional check (one-touch mode, anti-trapping protection and, if necessary, comfort function).
