Install left and right rear side trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Install rear trim panel

Precondition

The rear seat is folded down.

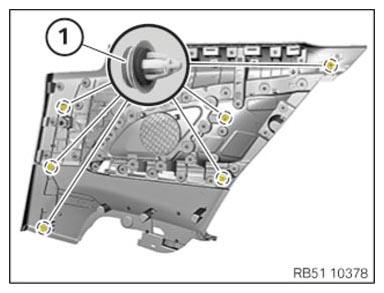

Check clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect all plug connections of the wiring harness to the rear side trim panel (1) and lock it.
Position the rear side trim panel (1) and clip it in at the clamps (3).
Clip in the rear side trim panel (1) at the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
