Installing the left and right C-pillar trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Installing C-pillar trim panel

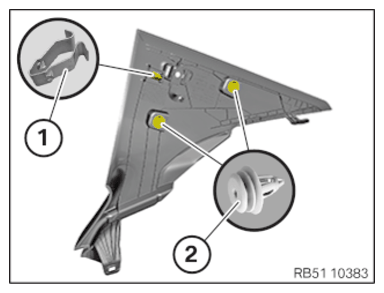

Check clamp (1) and clips (2) for damage and correct fit and, if necessary, replace them.

Courtesy of BMW OF NORTH AMERICA, INC.

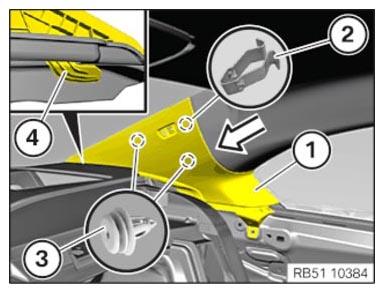

Position C-pillar trim panel (1) on guide (4) and guide it in the arrow direction.
Clip C-pillar trim panel (1) into clamp (2) and clips (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (2).

TIGHTENING TORQUES SPECIFICATION

C-pillar trim panel to body
Sheet metal screw	Tightening torque	2 Nm

Clip in the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
