Installing the left and right sun visor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Install the sun visor
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Connect and lock corresponding connectors.
- Install the sun visor.

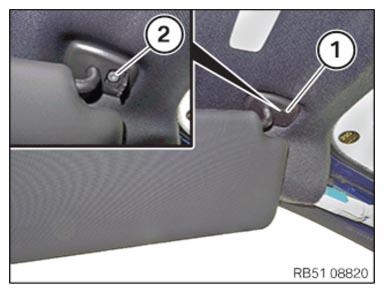

- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Sun visor to body Screw tightening torque 3.3 Nm - Close the cover (1).

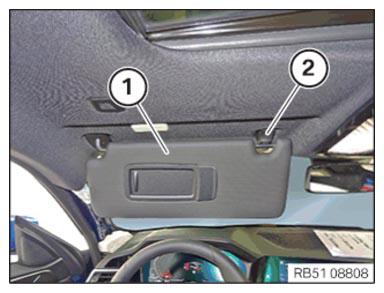

- Attach the sun visor (1) on the counter support (2).
