Installing the inner door sill cover strip on the left and right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the inner door sill cover strip

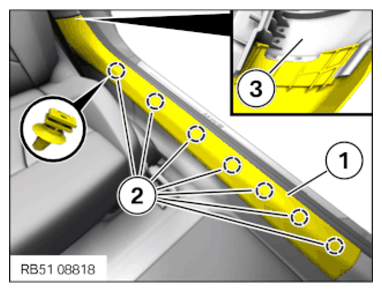

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the door sill cover strip (1) under the rear side trim panel (3).
Clip in door sill cover strip (1) with clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
