(Installing the horn plate)
- Check the position of the springs (1) on the impact plate (2), correct if applicable.

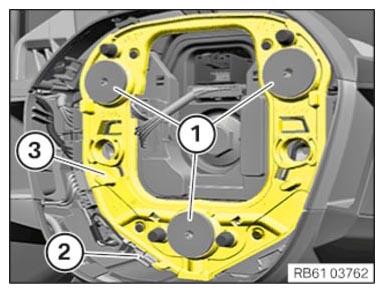

- Position the impact plate (3).
- Tighten the screws (1).
(TIGHTENING TORQUES SPECIFICATIONS)
| Horn plate on steering wheel | ||
|---|---|---|
| M5 Screw |
Tightening torque | 4.5 Nm |

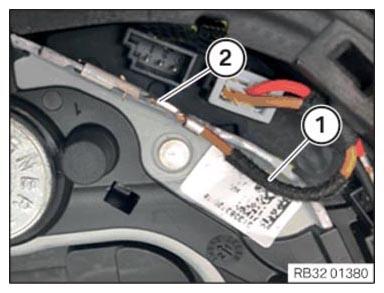

- Connect the grounding cable (2) (see next step).
- Check the tight fit of the connector of the grounding cable (2).
- Make sure that the cable routing (1) is correct.
