Remove the windshield
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Preliminary work
- Refer to REMOVING THE COVERS FOR THE INTERIOR MIRROR .
- Refer to REMOVING THE INTERIOR REARVIEW MIRROR .
- Refer to REMOVING THE ADCAM CAMERA (BASIC VERSION) .
- Refer to REMOVING ADCAM CAMERA (MID VARIANT/HIGH-END VERSION) WITH LENS HOOD .
- Refer to DISCONNECTING THE PLUG CONNECTION ON THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR .
- Refer to REMOVING THE SIDE COVER ON THE LEFT AND RIGHT DASHBOARD .
- Refer to REMOVING THE CENTER A-PILLAR TRIM PANEL AT LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE WATER COLLECTION STRIP ON THE WINDSHIELD .
- Refer to REMOVING THE ENTIRE COWL COVER .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Protect the body from damage with plastic adhesive tape in the area of the piercing point.
CONSUMABLE SPECIFICATION
| Plastic adhesive tape | 83195B3DD17 |

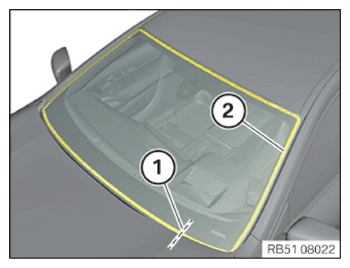

- Push the thread (1) through the adhesive bead (2) along the line from the inside.
- Cut out the windshield with the spider.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Remove windshield with the special tool 0 492 609 (51 3 010) .
