Installing the vibration damper
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .
- It is imperative to use the special tool when fitting the vibration damper.
NOTE:
TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.
- Clean the sealing surface (1) from oil and contamination.
- Screw in the special tool 2 466 729
and hand-tighten it on the crankshaft.

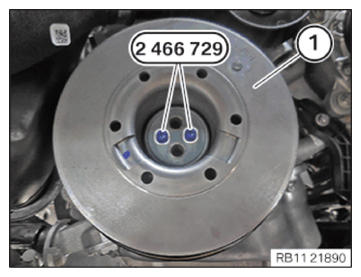

- Insert and install the vibration damper (1) on the special tool 2 466 729
.
- Replace the bolts (arrows).
Parts: Screws

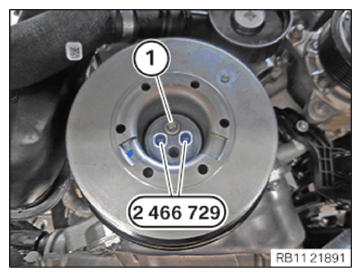

- Hand-tighten the bolt (1).
- Guide the special tool 2 466 729
out and remove.

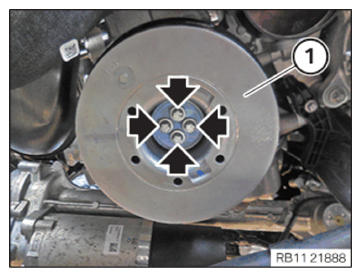

- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Vibration damper to crankshaft | ||
| M10 x 65 Replace screws. |
Joining torque | 40 Nm |
| Angle of rotation | 120° | |
- Loosen screw (2).
- Slide the counter support with the bolt (2) down until the teeth (3) are no longer engaged in the gearing of the flywheel (4).
- Release the screw (1) and feed out and remove special tool 0 496 595 (11 6 130) .
Follow-up work
- Refer to INSTALLING STARTER MOTOR .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING THE CLEAN AIR PIPE AND THE RESONATOR .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT , and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING ENGINE OIL LEVEL .
NOTE:
RISK OF DAMAGE
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .
- It is imperative to use the special tool when fitting the vibration damper.
NOTE:
TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.
- Clean the sealing surface (1) from oil and contamination.
- Screw in the special tool 2 466 729
and hand-tighten it on the crankshaft.
- Insert and install the vibration damper (1) on the special tool 2 466 729
.
- Replace the bolts (arrows).
Parts: Screws
- Hand-tighten the bolt (1).
- Guide the special tool 2 466 729
out and remove.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Vibration damper to crankshaft | ||
| M10 x 65 Replace screws. |
Joining torque | 40 Nm |
| Angle of rotation | 120° | |
- Loosen screw (2).
- Slide the counter support with the bolt (2) down until the teeth (3) are no longer engaged in the gearing of the flywheel (4).
- Release the screw (1) and feed out and remove special tool 0 496 595 (11 6 130) .
Follow-up work
- Refer to INSTALLING STARTER MOTOR .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to INSTALLING THE DRIVE BELT FOR THE STARTER MOTOR GENERATOR .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING THE CLEAN AIR PIPE AND THE RESONATOR .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT , and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to CHECKING ENGINE OIL LEVEL .
