Installing acoustic cover
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .
- Disassemble or mount the acoustic cover/design cover carefully.
- Disassemble or mount snap-lock couplings of the ball pivots one after the other.
- Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
- Use only distilled water as an auxiliary material during installation, no lubricants.

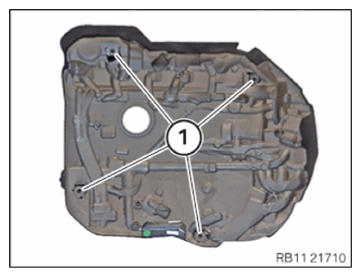

- Check the rubber mount (1) for a correct seat of the acoustic cover.

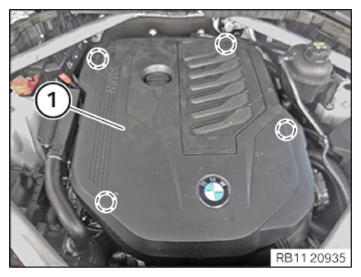

- Install the acoustic cover (1) and fasten it in the rubber mounts (marks).
