Installing starter motor
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Prerequisite
Acoustic cover of the oil pan has been removed.

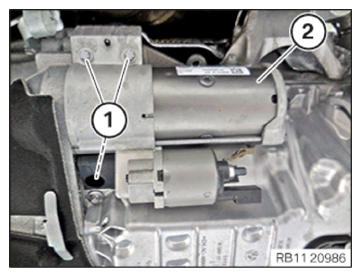

- Insert and install the starter motor (2).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Starter motor to crankcase | |
| M8x60 | Tightening torque 19 Nm |
Follow-up work
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
