Installing the intake filter housing (tension strut removed on shock tower)
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Prerequisite
The tension strut on the shock tower is removed.

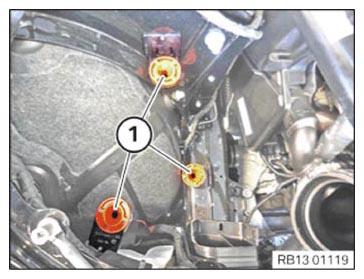

- Check rubber mount (1) for correct fit.

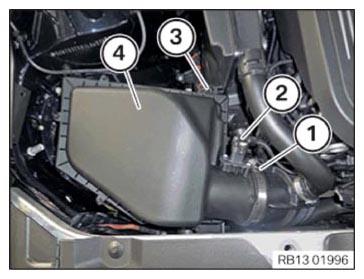

- Insert the intake filter housing (4) and engage in the rubber mounts.
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Intake silencer housing to resonator | ||
| TS5x20 | Tightening torques | 2.5 Nm |
- Connect and lock the connector (2) of the hot film air mass meter.
The connector (2) must lock audibly.
- Tighten clamp (1).
TIGHTENING TORQUE SPECIFICATIONS
| Clean air pipe to upper section of intake filter housing | ||
| cl. | Tightening torque | 3 Nm |
