Installing the support for the front bumper cover at the bottom

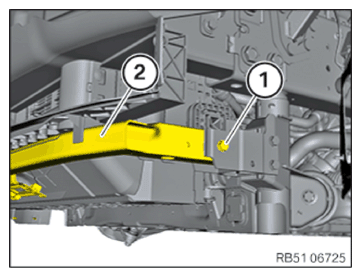

• Thread in the support for the bumper cover (2)  .
• Position all screws and center the support for the bumper cover (2)  .
  NOTE: Perform the steps on the right and left side.
• Tighten down screw (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Bottom support on front axle support adapter
  M8x70 screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

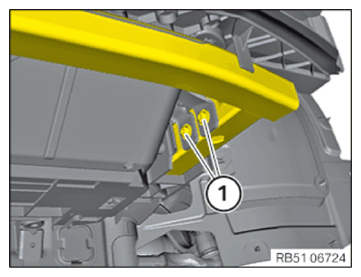

• Tighten the screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Vertical connection to support for bumper cover
  M6x20 screw	Tightening torque	11.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING THE FRONT PART OF THE LEFT FRONT AND RIGHT WHEEL ARCH COVER (PARTIALLY REMOVED) .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM (PARTIALLY REMOVED) .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
