Installing the lower left front wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front left bottom wheel arch cover

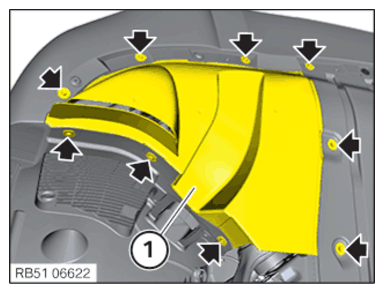

- Feed in the front bottom wheel arch cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Lower front wheel arch cover | ||
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
