Install left and right brake ventilation duct

• Insert and install the brake ventilation duct (2) on the right.
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

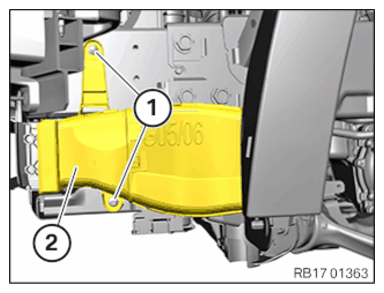

• Insert and install the brake ventilation duct (2) on the left.
• Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
