Installing the front part of the left front and right wheel arch cover (partially removed)

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing front section of the front wheel arch cover (partially removed)

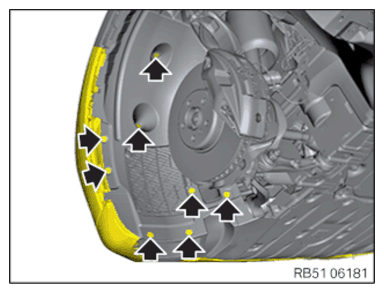

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Wheel arch cover
Thermoplastic hexagon screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
