Install the center trim

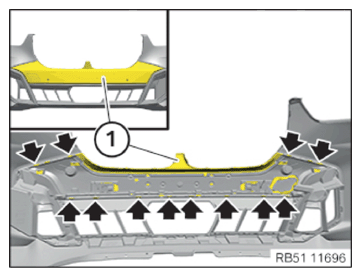

• Install trim (1) and snap it into the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

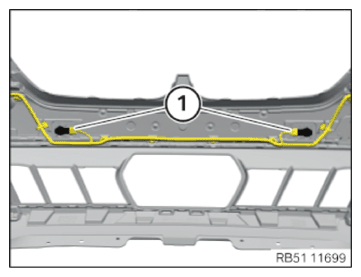

• Connect connectors (1) and lock.
• Properly position wiring harness and clip it in place at all clips.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING DECORATIVE TRIM, LATERALLY LEFT AND RIGHT .
• Refer to INSTALLING LEFT AND RIGHT RETAINING FRAME .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING THE FRONT PART OF THE LEFT FRONT AND RIGHT WHEEL ARCH COVER (PARTIALLY REMOVED) .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM (PARTIALLY REMOVED) .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
