Installing left and right retaining frame
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the retaining frame
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

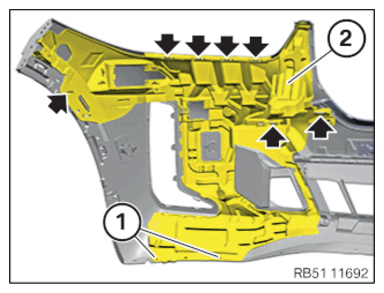

- Correctly position the retaining frame (2) and snap it in at the detents (arrows).
- Mount blind rivets (1) using special tool 0 496 521 (00 2 230).

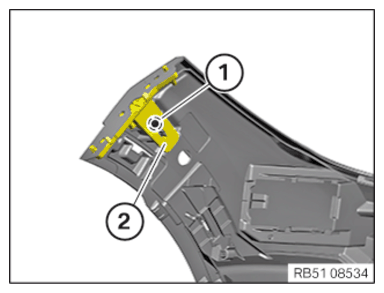

- Guide in holder (2) and position it correctly.
- Tighten down screw (1).
