Install decorative trim, laterally left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the decorative trim
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

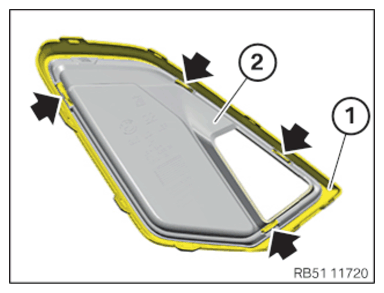

- Position the decorative trim panel (1) on the air intake trim (2) and snap it into the detents (arrows).

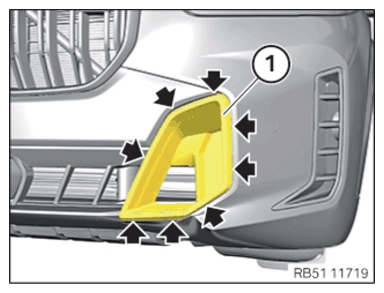

- Install the decorative trim (1) and snap it into the detents (arrows).
