Installing the positive battery cable from the alternator to the auxiliary terminal for jump starting

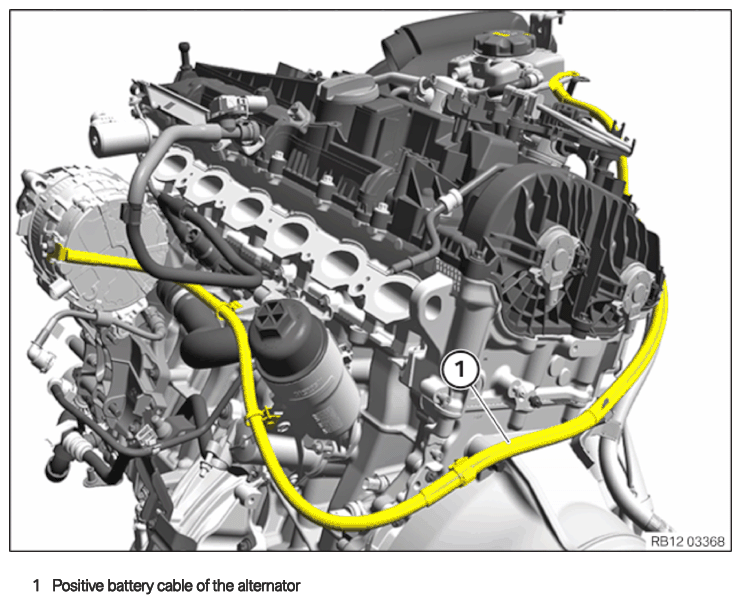

Positive battery cable of the alternator
Precondition
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.

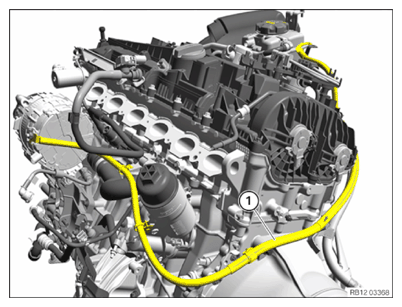

- Insert and install the positive battery cable (1)
.

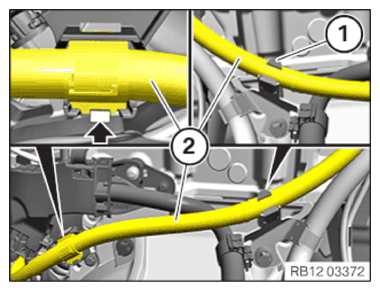

- Feed the positive battery cable (2) into the holder (1) and install it.
- Make sure that the lock (arrow) locks in place correctly.

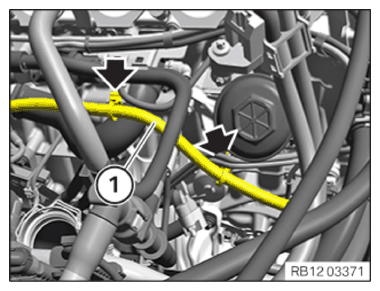

- Insert and install the positive battery cable (1) .
- Secure the clamps (arrows).

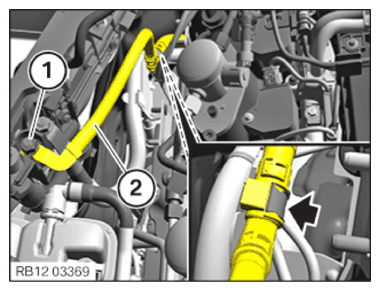

- Insert and install the positive battery cable (2) .

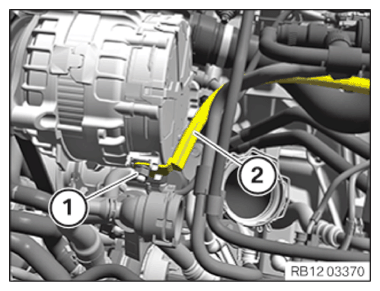

- Tighten nut (1) .
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable to the alternator | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |

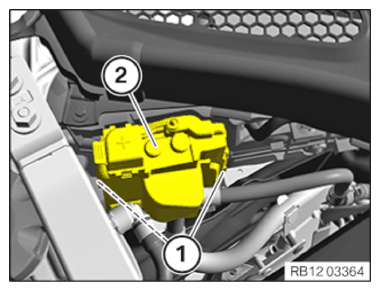

- Secure positive battery cable (2) to the holder (arrow).
- Tighten nut (1) .
TIGHTENING TORQUES SPECIFICATION
| Battery positive lead to battery positive terminal | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING CHARGE AIR COOLER .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
- Refer to INSTALLING THE LEFT AIR DUCT .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to INSTALLING THE COVER PANEL OF THE ENGINE COMPARTMENT ON THE REAR LEFT AND RIGHT .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT RADIATOR .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to PARTIALLY INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM .
- Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
