Installing the support for instrument panel

• Install the support (3)  .
• Correctly position the heating and air-conditioning unit (2)  in the area of the screw connection (1)  on the support (3)  .
• Make sure that cable routing is correct and clip in all cable clips on the support.
• Tighten the screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Heating and air-conditioning unit to the support for the dashboard
  M6x20 screw Replace screw	Tightening torque	8 Nm
  Nut M6 Replace nut	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

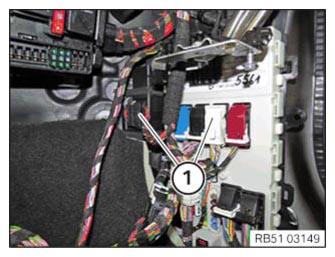

• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

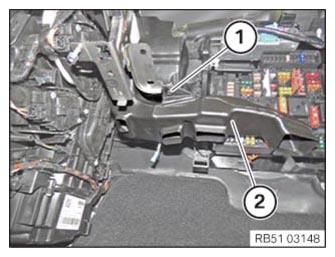

• Install air duct (2)  .
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Footwell ventilation duct
  Screw	Tightening torque	2.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

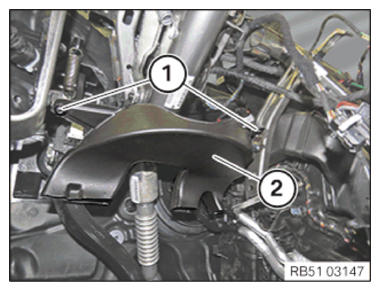

• Install air duct (2)  .
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Footwell ventilation duct
  Screw	Tightening torque	2.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

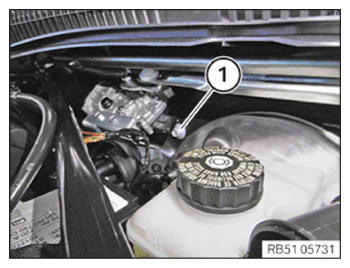

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Support for the dashboard
  Screw	Tightening torque	21 Nm
  Nut	Tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the nuts (1) on the left and right.
  TIGHTENING TORQUE SPECIFICATIONS



  Support for the dashboard
  Screw	Tightening torque	21 Nm
  Nut	Tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

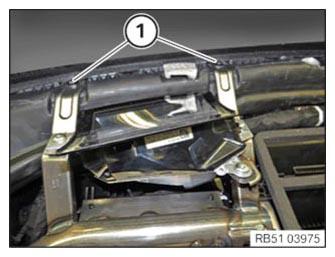

• Install retaining bracket (3)  .
• Tighten nuts (2)  .
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Heating and air-conditioning unit to the support for the dashboard
  M6x20 screw Replace screw	Tightening torque	8 Nm
  Nut M6 Replace nut	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pull the steering column spindle (1) out to the maximum length.
• Push universal joint (2)  onto the spindle (1) of the steering column.

  Brace the spindle (1) on the steering column.

• Replace the clamping bolt (3)  .

  Parts:  Clamping bolt

• Tighten the clamping bolt (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Lower steering shaft to steering column
  Clamping bolt M8 Recut screw thread. Replace clamping bolt. No retorque permitted!	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

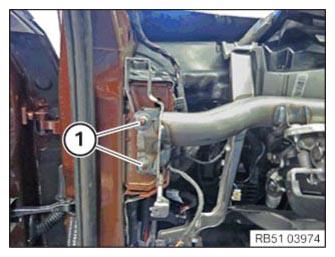

• Tighten the screw (1) on the firewall.
  TIGHTENING TORQUE SPECIFICATIONS



  Support for the dashboard
  Screw	Tightening torque	21 Nm
  Nut	Tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Connect positive battery cable

  Precondition

  Ignition is switched off.

• Mount the positive battery cable (2)  and position correctly.
• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Battery terminal clamp with IBS positive battery terminal/negative battery terminal
  Nut M6	Tightening torque	5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in cover (2)  and position correctly.
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Cover of remote positive terminal
  screw	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INSTRUMENT PANEL TRIM .
• Refer to INSTALLING THE LEFT FOLD-DOWN COMPARTMENT .
• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE STEERING WHEEL/SPORTS STEERING WHEEL .
• Refer to INSTALLING AIRBAG UNIT OF STEERING WHEEL/SPORTS STEERING WHEEL .
• Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
• Refer to INSTALLING THE FRONT RIGHT DOOR SILL COVER STRIP .
• Refer to INSTALLING SIDE TRIM PANEL IN THE FOOTWELL AT A-PILLAR .
• Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
• Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANELS .
• Refer to INSTALLING THE LIGHT OPERATING UNIT .
• Refer to INSTALLING THE START-STOP BUTTON .
• Refer to INSTALLING DECORATIVE STRIP FROM INSTRUMENT PANEL .
• Refer to INSTALLING THE HEAD UNIT HIGH (HU-H) .
• Refer to INSTALLING THE MID-RANGE SPEAKERS IN THE INSTRUMENT PANEL .
• Refer to INSTALLING AUDIO OPERATING UNIT AND AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE FINISHER ON THE RIGHT INSTRUMENT PANEL .
• Refer to INSTALLING RIGHT GLOVE COMPARTMENT .
• Refer to INSTALLING KNEE AIRBAG .
• Refer to INSTALLING THE SIDE PANEL ON INSTRUMENT PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING CENTER CONSOLE FULLY WITH CENTER ARMREST .
• Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE DECORATIVE TRIM TO THE CENTER CONSOLE .
• Refer to INSTALLING THE GEARSHIFT LEVER COVER .
• Refer to INSTALLING SIDE TRIM PANEL FOR THE LEFT AND RIGHT CENTER CONSOLE .
• Refer to INSTALLING THE BOTTOM RIGHT INSTRUMENT PANEL TRIM .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING THE BATTERY EARTH LEAD .
