61 31 251 Remove & install audio operating facility (X2 2018-2023)
>>
Installing audio operating unit and air conditioning control panel
Installing audio operating unit and air conditioning control panel
Position audio operating unit and air conditioning control panel.

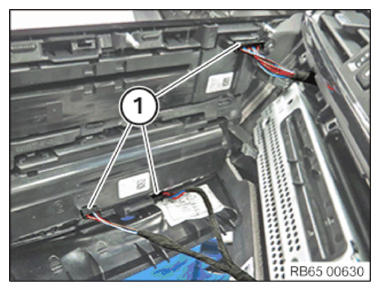

Connect plug connection (1) and lock,
Courtesy of BMW OF NORTH AMERICA, INC.

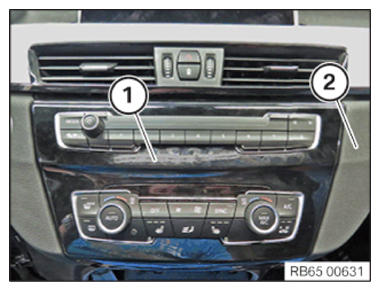

Correctly position trim (1) and clip it into the instrument panel (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
