Install the Head Unit High (HU-H)
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

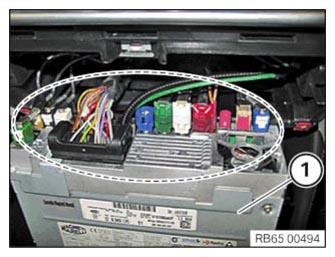

- Position head unit (1) .
- Connect and lock all connectors in the marked area.

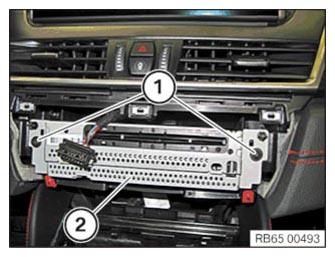

- Slide in the head unit (2) correctly.
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

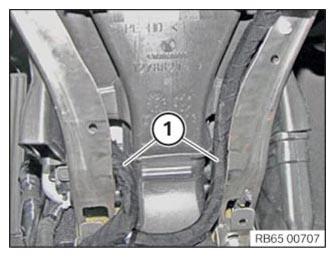

Head unit to dashboard screw Tightening torque 1.8 Nm - Route the wiring harness (1)
correctly.
Follow-up work
- Refer to INSTALLING AUDIO OPERATING UNIT AND AIR CONDITIONING CONTROL PANEL .
- Refer to INSTALLING CENTER CONSOLE, COMPLETE .
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE DECORATIVE TRIM TO THE CENTER CONSOLE .
- Refer to INSTALLING THE GEARSHIFT LEVER COVER .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING SIDE TRIM PANEL FOR THE LEFT AND RIGHT CENTER CONSOLE .
- Refer to INSTALLING THE BOTTOM RIGHT INSTRUMENT PANEL TRIM .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
