Installing knee airbag

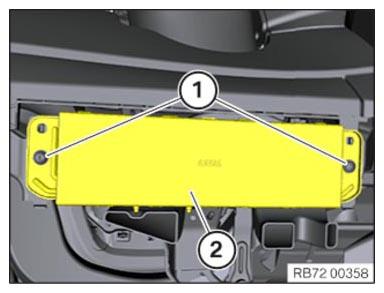

- Connect the plug connection to the knee airbag (2) and lock.
- Install knee airbag (2).
- Replace screws (1).
Parts
: Screw
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Knee airbag to body |
M8
Replace screws. |
Tightening torque |
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
