Installing side trim panel for the left and right center console

Installing side trim panel for the left center console

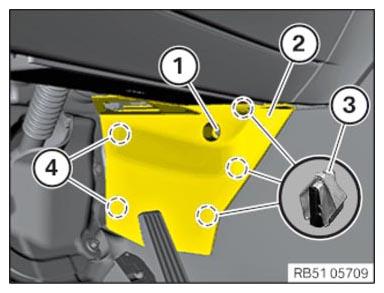

• Install the side trim panel (2)  for the center console and feed it into the guides (4)  .
• Engage the side trim panel (2)  for the center console into retaining clips (3)  .
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Trim/side trim panel to center console
  Oval-head screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the side trim panel for the right center console

  NOTE: TECHNICAL INFORMATION
  Detents, guides and mounting elements must not be damaged or missing.
• Install the side trim panel for the center console (2)  and feed into the guides (4)  .
• Engage the side trim panel for the center console on the retaining clips (3)  .
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Trim/side trim panel to center console
  Oval-head screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
