Installing front heat shield

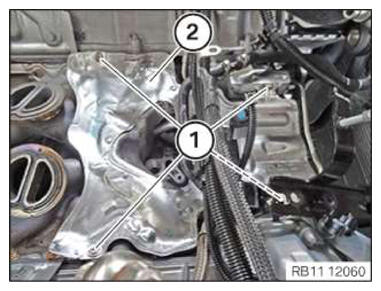

• Insert and install the front heat shield (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Heat protection plate
  M6x12 screw Replace screw.	tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

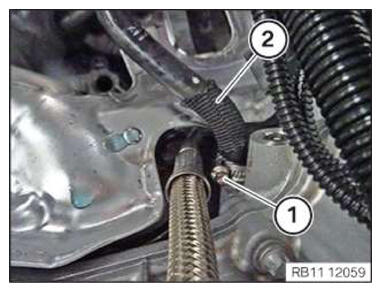

• Route the coolant line (2) and connect it to the cylinder head.
• Tighten clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ALTERNATOR .
• Refer to ATTACHING THE CHARGE AIR COOLER .
• Refer to INSTALLING BOTH EXHAUST TURBOCHARGERS .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING THE LEFT CHARGE AIR LINE .
• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to INSTALLING THE RIGHT CHARGE AIR LINE .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING DRIVE BELT .
• Refer to PARTIALLY FASTENING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING BOTH FRONT-END STRUTS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE CATALYTIC CONVERTER FOR CYLINDERS 5 TO 8 .
• Refer to RELEASING THE HEAT SHIELD .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to ATTACHING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING RIGHT HEAT SHIELD .
• Refer to INSTALLING LEFT HEAT SHIELD .
• Refer to INSTALLING HEAT SHIELD, TOP .
• Refer to INSTALLING THE RIGHT OXYGEN SENSOR MONITOR .
• Refer to INSTALLING THE LEFT OXYGEN SENSOR MONITOR .
• Refer to PARTIALLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
• Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING THE RETAINING BRIDGE .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING CENTER STIFFENING PLATE .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING REAR PANEL .
• Refer to PARTIALLY INSTALLING THE REAR LEFT AND RIGHT WHEEL ARCH COVERS .
• Refer to INSTALLING BOTH EXHAUST COVERS .
• Refer to INSTALLING BOTH SIDE REAR TRIM STRIPS .
• Refer to INSTALLING THE REAR BUMPER TRIM .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
• Refer to INSTALLING BOTH LEDS IN THE CARGO AREA .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to ACTIVATE ON-BOARD NETWORK .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
