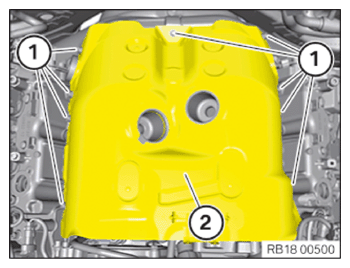

Install heat shield, top

• Install top heat shield (2)  .
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
• Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING THE RETAINING BRIDGE IN VEHICLES WITH A GASOLINE PARTICULATE FILTER .
• Refer to INSTALLING THE RETAINING BRIDGE .
