Installing the rear differential (without GHAS)

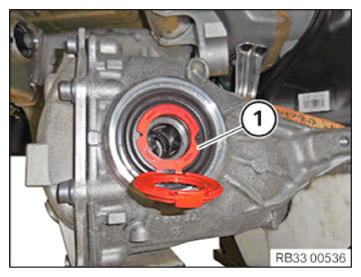

• Fold open the assembly protection ring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

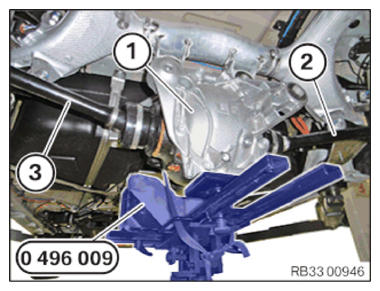

• Raise the rear differential (1) with the special tool 0 496 009 (33 5 200)  .
• Insert the left output shaft (3) into rear differential (1).
• Turn rear differential (1) to the right and insert the right output shaft (2) into rear differential (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

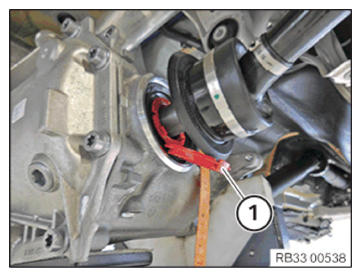

• Pull on the lug (1) of the installation protection ring until one of the two predetermined breaking points breaks.
• Pull out and dispose of the installation protection ring.

  Courtesy of BMW OF NORTH AMERICA, INC.

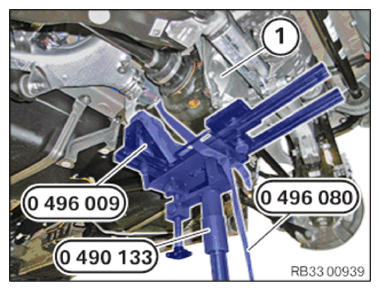

• Lift the rear differential (1) using special tools 0 496 009 (33 5 200)  and 0 490 133 (00 2 030) and position on the rear axle support.
• Make sure that the special tool 0 496 080 (33 5 206)  is not pinched between the rear differential and the dust plate.

  Courtesy of BMW OF NORTH AMERICA, INC.

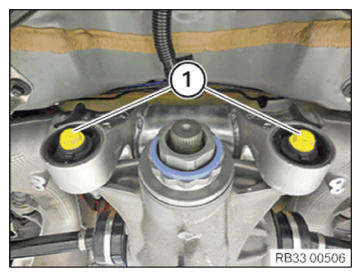

• Replace screws (1).

  Parts:  Screws

• Screw in the screws (1) using hand force and tighten.
  TIGHTENING TORQUES SPECIFICATION



  Rear differential to rear axle carrier, front
  M12 Replace screw.	Joining torque	100 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
• Position the ground strap (2).
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Ground strap on rear axle differential
  M12	Tightening torque	15 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1).

  Parts:  Screw

• Insert the screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Rear differential to rear axle carrier, rear
  M14 Replace screw and nut.	Joining torque	165 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

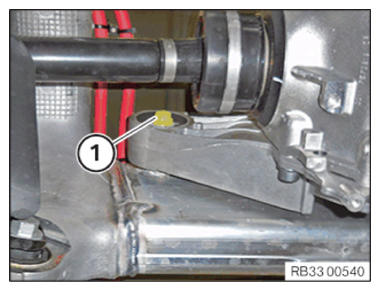

• Replace the screw (1).

  Parts:  Screw

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Rear axle differential to rear right rear axle support
  M10 Replace screw.	Joining torque	56 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release and remove special tool 0 496 080 (33 5 206)  from rear differential (1).
• Lower and remove the special tools  0 490 133 (00 2 030)  and 0 496 009 (33 5 200)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE REAR DIFFERENTIAL .
• Refer to CHECK/TOPPING UP OIL LEVEL IN THE REAR DIFFERENTIAL .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR DIFFERENTIAL .
• Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
• Refer to INSTALLING REAR BUMPER PANEL .
• Refer to INSTALLING BOTH EXHAUST COVERS .
• Refer to INSTALLING THE REAR BUMPER TRIM .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to IF INSTALLED: INSTALLING THE REAR AXLE COVER .
• Refer to INSTALLING THE TORSION STRUT ON THE REAR LEFT AND RIGHT .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL LEFT AND RIGHT PARTIALLY .
• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
