Fastening the right and left output shafts on the rear axle differential

NOTE: Perform the steps on the right and left side.

Secure the output shaft on the rear axle differential

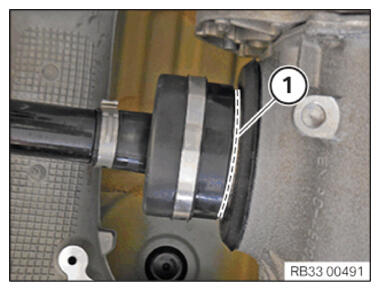

In the following step, insert the special tool on the circumferential slot (1) of the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

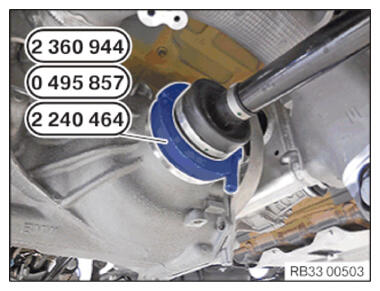

Use the right special tool 2 360 944, 0 495 857 (33 5 125) or 2 240 464 and a rubber mallet to pound the output shaft into the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.
