Installing the drive cable of the rear roller sunblind
- The drive cables (1) have a color coding at the end (2) .
- Assignment of color coding:
Color Position Blue Front left White Front right Green Rear left red Rear right - Feed the drive cable for the roller sunblind (1)
into the guide (2)
.

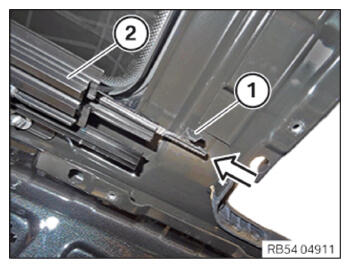

- Push in the drive cable for the roller sunblind until the driver (1)
is flush with the guide rail (2)
.
Follow-up work
- Refer to INSTALLING THE DRIVE FOR REAR ROLLER SUNBLIND .
- Refer to INSTALLING MECHANICS .
- Refer to INSTALLING THE ROLLING MODULE .
- Refer to PARTIALLY INSTALLING THE HEAD AIRBAG .
- Refer to CHECKING THE ROLLER SUNBLIND AND THE GLASS ROOF FOR FUNCTION .
- Refer to INSTALLING THE HEADLINING (LOWERED WITH PANORAMIC GLASS SUNROOF) .
- Refer to INSTALLING INTERIOR ROOF LIGHT .
- Refer to INSTALLING THE GRAB HANDLE AT THE REAR LEFT AND RIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
- Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
- Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to INSTALLING BOTH BACKREST SIDE SECTIONS .
- Refer to PARTIALLY INSTALLING BOTH B-PILLAR TRIM PANELS AT TOP .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE PANORAMA ROOF COVER .
- Refer to CHECKING THE ADJUSTMENT OF THE PANORAMA GLASS ROOF .
- Refer to ADJUSTING THE PANORAMA ROOF COVER .
- Refer to INSTALLING SEALING RING FOR THE PANORAMIC ROOF INSIDE .
- Refer to INITIALIZING PANORAMA GLASS ROOF .
